Shoelace Abrasion Tester UP-4012

Product Introduction:

 Shoelace Abrasion Tester evaluates the abrasion resistance of cotton, chemical fiber and other shoelace materials. It simulates repeated friction between shoelace & shoelace, or shoelace & shoe eyelet, supporting 4 groups of samples tested simultaneously for footwear quality inspection and R&D.

Product Highlights:

  • Four independent test stations with separate digital counters for high testing efficiency
  • Single-station auto-stop function, no interference with ongoing tests
  • Standard 52.5° fixed friction angle ensures accurate and repeatable data
  • 0–999,999 preset cycle counter for flexible test setting
  • Stable low-noise structure for long-duration continuous testing

Compliance Standards:

SATRA TM154, DIN 4843, ISO 22774, GB/T 3903.36, QB/T 2226, BS 5131:3.6

Product Detail

SERVICE AND FAQ:

Product Tags

Product Application:

Suitable for shoe factories and testing labs to verify shoelace fray resistance, friction durability and material quality.

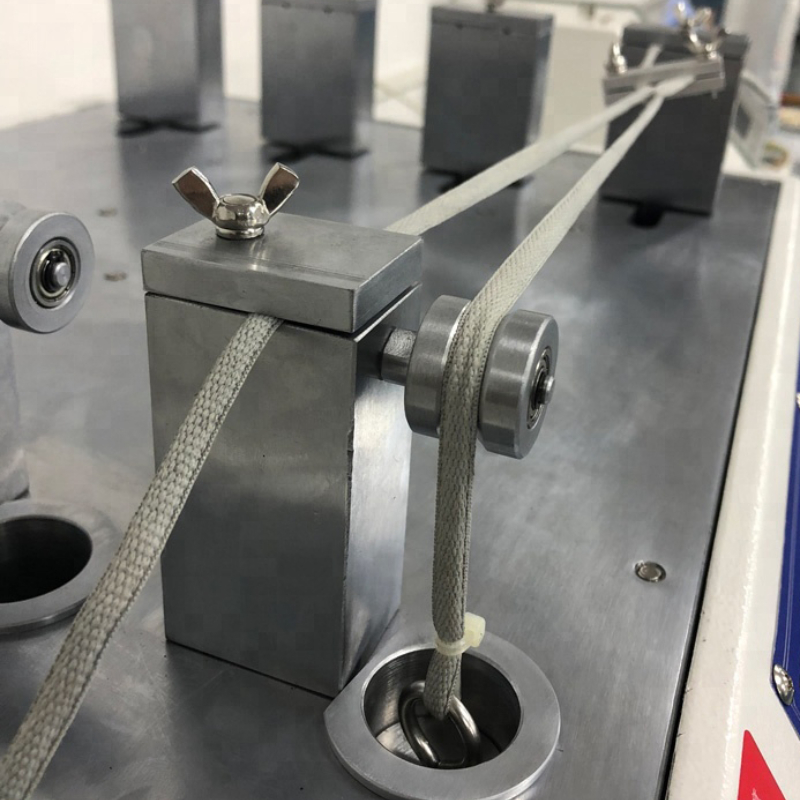

DIN4843 Shoelace Abrasion Testing Machine-2

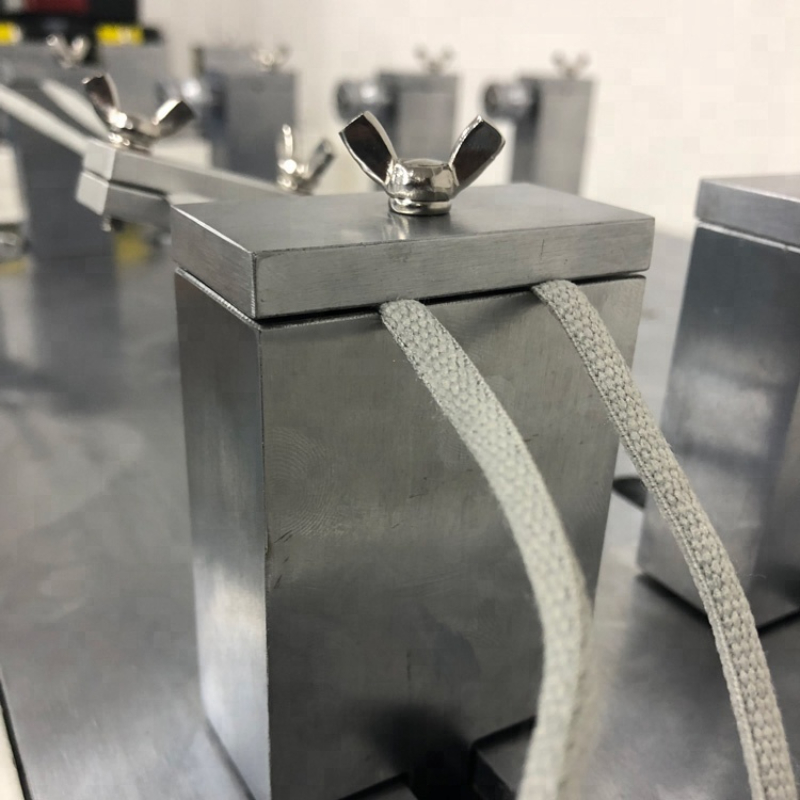

DIN4843 Shoelace Abrasion Testing Machine-3

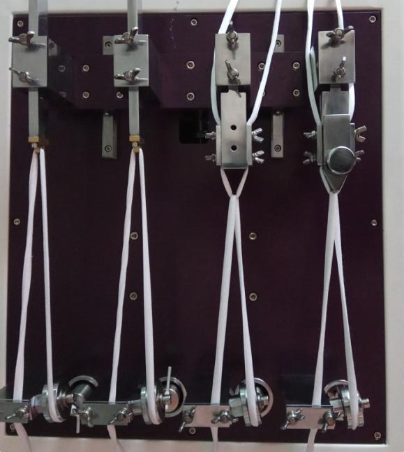

UP-4012 -01

Specification:

Item

Specification

Test Stations

4 stations (independent control)

Standard Load Weight

250g ±3g per station

Reciprocating Stroke

35mm ±2mm

Test Speed

60 ±3 cycles per minute

Friction Angle

52.5° ±5° fixed standard angle

Cycle Counter

LCD digital display, 0 ~ 999,999 cycles

Power Supply

Single phase AC220V 50Hz (110V 60Hz optional)

Overall Dimension

660 × 580 × 420 mm (L×W×H)

Net Weight

70 kg

Standard Accessories

Full set of fixture clamps, 4pcs standard weights, operation manual


  • Previous:
  • Next:

  • Our service:

    During the whole business process, we offer Consultative Selling service.

    1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

    2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

    3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

    4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

    FAQ:

    1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

    Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

    2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

    3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

    4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
