Transportation Simulation Vibration Tester UP-6032

Product Introduction:

UP‑6032 Transportation Simulation Vibration Tester reproduces real‑world road vibration conditions for packaged products. It simulates bumping and jolting generated during truck and container logistics transportation to evaluate product structural integrity, packaging protection performance and anti‑loose capacity. This bench‑top unit detects potential packaging defects before mass shipment and effectively lowers the risk of goods damage in transit.

Product Highlights:

1.Simulates vertical road‑bump vibration to restore real logistics transit environment

2.Supports continuous‑timing and preset‑cycle test modes for diverse test requirements

3.Multiple optional maximum load capacity:100 kg /200 kg /300 kg; test table size customizable

4.Mechanical eccentric drive, fixed amplitude 25.4 mm (1 inch), frequency 2‑5 Hz

5.Built‑in overload stop and emergency‑stop button for safe operation

6.Robust frame made of SUS201 stainless steel and painted carbon‑steel for long‑term service life

Testing Standards:

ASTM D999, ASTM D4169, ISTA 1A/2A/3A, GB/T 4857.7

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Specification

Item	Specification
Vibration Mode	Simulated road bump vibration (vertical)
Test Table Size	Customized (standard: 1000×1000 mm / 1200×1200 mm)
Maximum Load	100 kg / 200 kg / 300 kg (optional)
Vibration Frequency Range	2 ~ 5 Hz
Amplitude	25.4 mm (1 inch) fixed
Operation Mode	Continuous timing / preset cycle test
Driving Type	Mechanical eccentric drive
Power Supply	AC 220V, 50/60 Hz
Protection	Overload stop, emergency stop button
Machine Material	SUS201 stainless steel + carbon steel painted frame

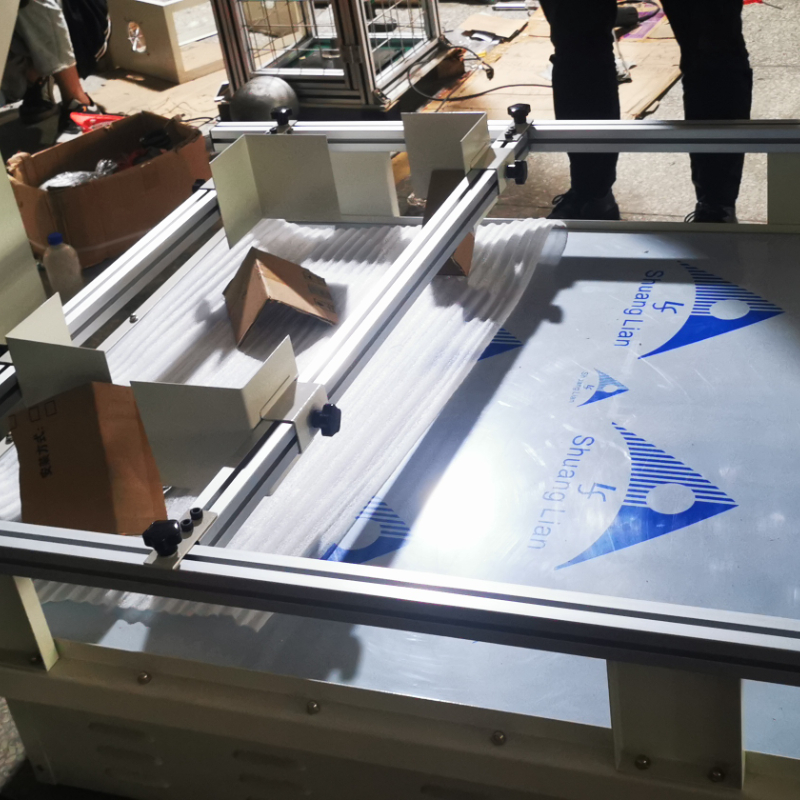

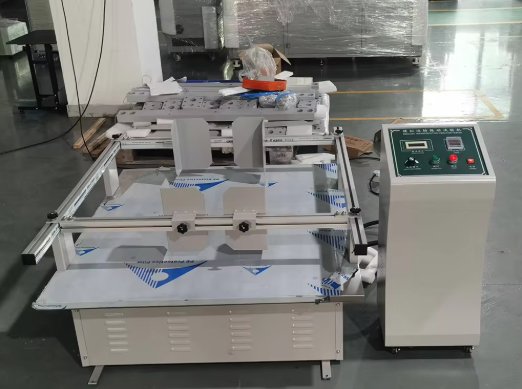

Transportation Simulation Vibration Tester (1)

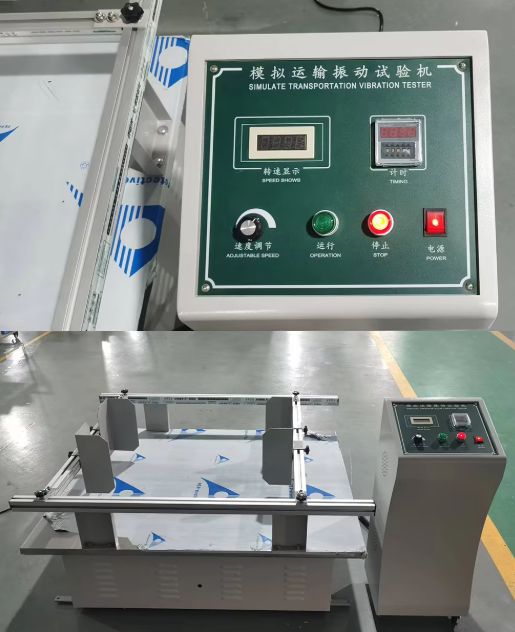

Transportation Simulation Vibration Tester (2)

Application

Finished consumer goods packaging test

Electronic components & household appliances packaging evaluation

Food, cosmetics, pharmaceutical packaging transit simulation

Automotive spare parts, hardware and logistics packaging verification

E-commerce express packaging reliability test

FAQ

Q1: What kind of vibration does UP‑6032 simulate?

A: It simulates vertical road bump vibration to reproduce actual jolting during truck and container logistics transportation.

Q2: Which industries commonly use this transportation vibration tester?

A: Widely used for consumer goods, home appliances, food, cosmetics, pharmaceutical, auto‑parts and e‑commerce express packaging reliability test.

Q3: What international standards can this machine meet?

A: It complies with ASTM D999, ASTM D4169, ISTA 1A/2A/3A and GB/T 4857.7 for packaging transit simulation tests.

Q4: Can test table and load capacity be customized?

A: Yes. Test‑table size and maximum load can be customized according to customer test demands.
