Water-Cooled Rapid Temperature Change Chamber UP-6195

Product Introduction:

Water‑Cooled Rapid Temperature Change Chamber is high‑performance environmental test equipment built for industrial‑grade temperature cycling and rapid temperature‑shift tests. Equipped with water‑cooled refrigeration and non‑linear temperature‑change technology, it delivers a steady 10℃/min ramp rate, supporting fast cooling from 80℃ to ‑40℃ and heating from ‑40℃ to 80℃.

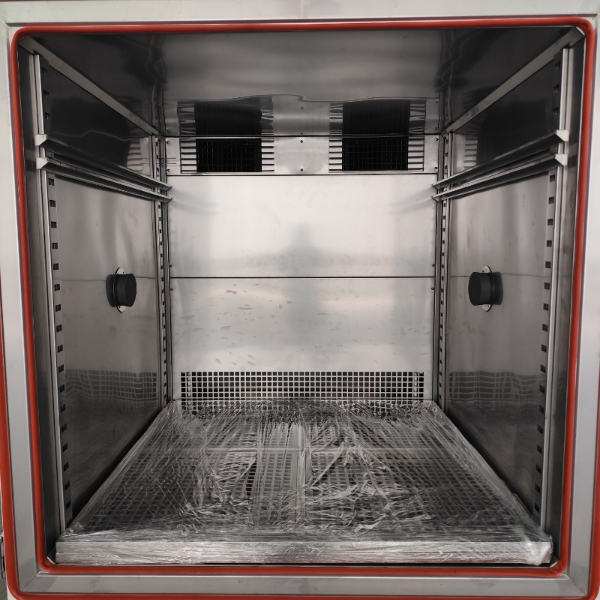

With a dual‑door integrated 1200×1200×1200 mm large inner chamber, it ensures stable operation and excellent test repeatability. Widely used for environmental stress screening, temperature durability and reliability testing of electronic components, auto parts, new‑energy products and industrial materials.

Product Highlights:

• Large‑Volume Dual‑door Chamber: 1200×1200×1200 mm (1728 L) inner size for easy sample loading, suitable for batch testing of large‑size workpieces.

• Stable 10℃/min Non‑linear Ramp: Professional temperature control enables fast high‑low temperature switching to simulate extreme ambient conditions.

• High‑efficiency Water‑cooled Refrigeration: Superior heat dissipation with no temperature decay under long‑term high‑load operation for continuous industrial testing.

• Human‑Centered Mechanical Design: Two 100 mm reserved test ports for external wiring; 620 mm cavity floor height for convenient sample access and inspection.

• Pre‑configured Intelligent System: Pre‑installed industrial PC, network cable and full‑English test software, ready for plug‑and‑play overseas deployment.

• Optimized Controller Layout: Controller embedded on upper‑left door for clear visibility and efficient daily operation & parameter setup.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Application

It performs reliability evaluation and quality inspection across multiple industries: consumer electronics, automotive electronic components, new‑energy batteries & parts, aerospace fittings, communication devices, hardware materials, plastic & rubber goods, precision instruments and more. It satisfies test requirements for Environmental Stress Screening (ESS), temperature cycling and rapid‑temperature‑change aging tests.

Specifications

Item	Technical Specification & Custom Requirement
Internal Chamber Size	1.2m × 1.2m × 1.2m (Customized)
Chamber Volume	1728L

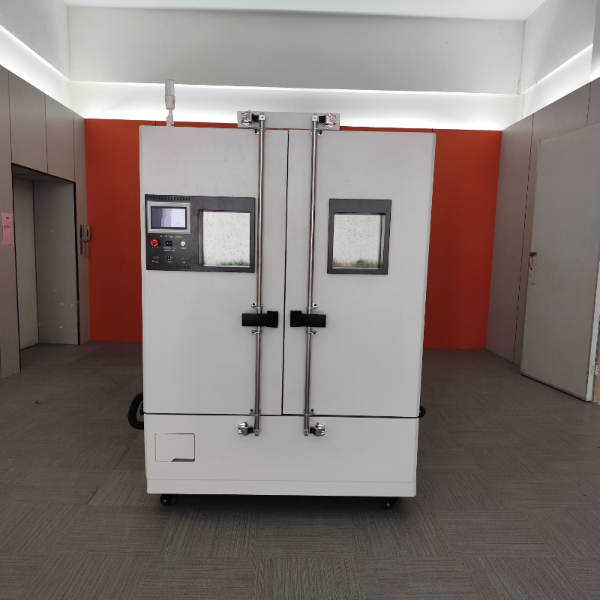

Door Structure	Double open door design
Temperature Range	-60℃ ~ +180℃ (Ajustable)
Heating time	10°C/min (non-linear，no load)
Cooling time	10°C/min (non-linear，no load)
Cooling Method	Water cooling system
Reserved Test Holes	Two 100mm diameter holes (left and right side each one)
Network Configuration	Equipped with 50 meters network cable
Computer Configuration	Comes with one set of non-brand industrial computer
Chamber Height from Floor	620mm distance between chamber bottom and ground floor
Controller Installation Position	Installed on the upper part of the left door
Power Supply	380V/50Hz,48KW/100A (Standard industrial power)

FAQ

Q1: What is the actual temperature‑change rate of this water‑cooled chamber?

A: It delivers a stable non‑linear rate at 10℃/min, supporting fast cooling from 80℃ to ‑40℃ and heating from ‑40℃ to 80℃ for environmental stress screening tests.

Q2: Why choose water‑cooled type instead of air‑cooled model?

A: Water‑cooled refrigeration offers stronger heat dissipation. It maintains stable performance without temperature decay during long‑term high‑load continuous industrial testing.

Q3: Does the unit come with industrial PC and test software?

A: Yes. It is pre‑fitted with an industrial PC, 50‑meter network cable and full‑English pre‑installed & debugged test software for plug‑and‑play overseas use.

Q4: What are the dimensions of the inner chamber? Are test ports reserved?

A: Inner chamber size is 1200×1200×1200 mm (1728 L). Two 100 mm test ports are reserved on left and right sides for external wiring and auxiliary testing.

Q5: What kinds of products is this chamber mainly used to test?

A: It is widely used for reliability tests of automotive electronics, new‑energy batteries, consumer electronics, aerospace components, rubber‑plastic products to meet ESS and temperature cycling aging requirements.

Q6: What test standards can this chamber satisfy?

A: It complies with IEC 60068‑2‑1, IEC 60068‑2‑2, IEC 60068‑2‑14, GB/T 2423.22, MIL‑STD‑810H for ESS environmental stress screening and temperature‑cycling tests, also supports ISO 16750‑4 automotive‑electronic test requirements.
