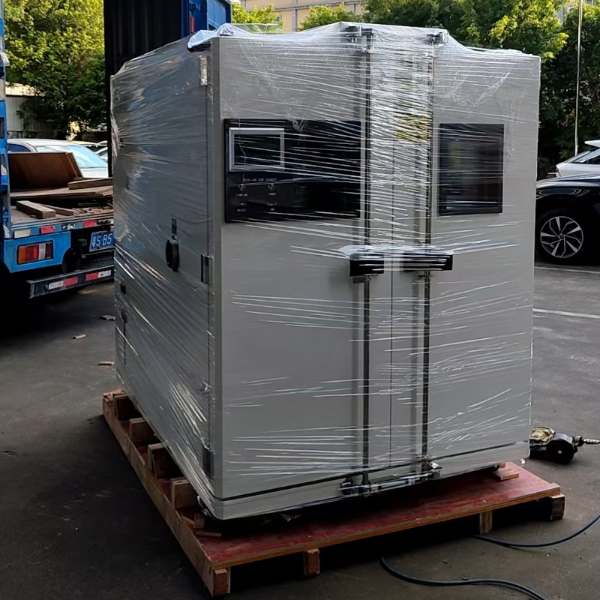

Programmable Constant Temperature and Humidity Test Chamber UP‑6195

Product Introduction:

Programmable Constant Temperature and Humidity Test Chamber is a professional climatic reliability tester. It simulates diverse temperature‑humidity conditions for aging, durability and performance verification of finished products and raw materials.

Featuring high‑precision synchronous PID temperature‑humidity control and an intuitive touch‑screen for programmable cyclic test curves, it delivers stable operation with uniform internal climate. Multiple chamber volumes are optional for both lab testing and mass‑production quality inspection.

Product Highlights：

• 7‑inch Color Touch‑screen Controller: Supports programmable cycle editing, real‑time curve display and test‑data recording.

• Imported‑compressor Refrigeration System: High‑efficiency, low‑energy‑consumption and stable cooling performance.

• SUS304 Stainless‑steel Inner Tank: Anti‑corrosive and easy‑to‑clean for extended service life.

• Comprehensive Safety Protections: Over‑temperature alarm, water‑shortage protection, compressor overload protection and power‑failure recovery function.

• Forced‑air Circulation: Guarantees excellent temperature & humidity uniformity inside test workspace.

• Viewing Window with LED Light: Hollow toughened‑glass observation window with built‑in LED lamp, enabling real‑time sample inspection without halting tests.

• Wide‑range Power Compatibility: Supports 50 Hz / 60 Hz power supply; custom chamber capacity is optional for different regional requirements.

Compliance Standards :

Designed and manufactured per IEC 60068, ASTM D1793, MIL‑STD‑810, GB/T 2423 and other mainstream climatic‑test specifications to meet global certification requirements.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Application

Ideal for reliability testing of electronic‑electrical components, lithium‑ion batteries, plastic‑rubber materials, auto spare parts, packaging materials, cosmetics, new‑energy photovoltaic modules, metal materials and textile accessories. It evaluates product‑performance changes under high‑temperature, low‑temperature, damp‑heat and alternating climatic environments.

Specification:

Item	Specification
Internal Volume	80L / 150L / 225L / 408L / 1000L (Customizable)
Temperature Range	-70℃ ~ +150℃ (Optional)
Humidity Range	20%RH ~ 98%RH
Temp Fluctuation	±0.5℃
Humidity Deviation	±2.5%RH
Temp Uniformity	≤ ±2.0℃
Rate of Heating	1-3℃/min (Adjustable)
Rate of Cooling	0.7-1.2℃/min
Inner Material	SUS304 Stainless Steel
Outer Housing	Powder-coated Steel Sheet
Controller	Programmable Touch-screen PID
Power Supply	AC220V / 380V, 50Hz / 60Hz
Safety Protection	Mult-layer safety interlock & alarm system

FQA

Q1: What chamber volumes can I choose for UP‑6195?

A: Standard sizes include 80L, 150L, 225L, 408L, 1000L. Custom volume is also supported for your test‑space requirements.

Q2: What temperature and humidity range can this chamber achieve?

A: Temperature range:‑70℃ ~ +150℃; humidity range:20%RH‑98%RH, adjustable for various climatic‑simulation tests.

Q3: Can I program cyclic temperature‑humidity test curves?

A: Yes. The 7‑inch touch‑screen PID controller supports custom cyclic‑test editing, real‑time curve display and test‑data recording.

Q4: What safety protections does this constant‑humidity‑temperature chamber have?

A: It is equipped with over‑temperature alarm, water‑shortage protection, compressor‑overload, over‑current protection and power‑failure‑recovery function.

Q5: What products are suitable to test inside this climatic chamber?

A: Widely used for electronics, lithium‑ion batteries, automotive parts, plastic‑rubber, photovoltaic modules, cosmetics and textiles for aging & reliability evaluation.
