UP-3002 ISTA Compliant Automatic Dual-arm Drop Tester

Product Description:

The double-arm drop testing machine is mainly used to assess the impact of drop impact on the packaging in the process of actual transportation and loading and unloading, and to assess the impact strength of the packaging in the process of handling and the rationality of the packaging design.

Design Standard: GB4757.5-84 JISZ0202-87 ISO2248-1972(E),ASTM D5276

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Technical Parameters:

Drop Height	300-1500mm
Specimen Weight	80kg
Height Display	digital
Drop Method	Electric
Return Method	Manually
Specimen Clamp Method	Side, edge, angle
Bottom Plate	1400140010mm
Max Specimen Size	800800800mm
Machine Size	140012002200mm
Drop Error	±10mm;
Drop Plane Error	<1°
Machine Weight	300kg
Control Box	Separate type vertical control box, anti - static spray paint
Power Supply	220V, 5Hz

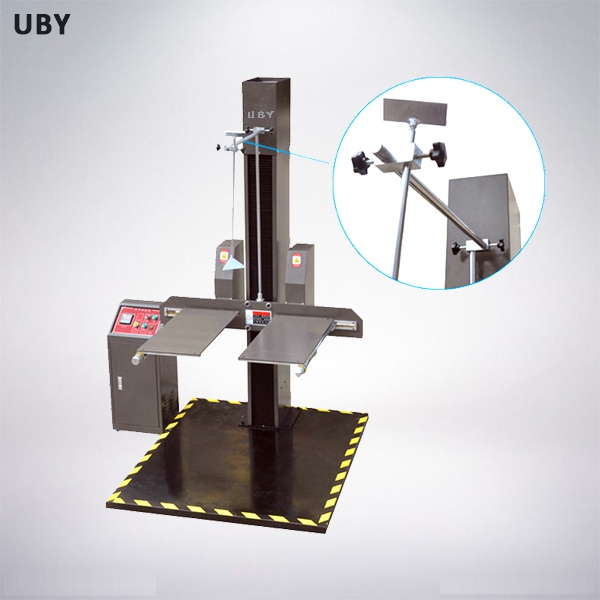

carton box and bag drop test machine 1-1

Operating Specifications:

1. Turn on the power switch and the power light will turn on (in this case, it is strictly prohibited for any untrained personnel to enter the yellow warning line for any related testing operations, as this is very dangerous). Check if both wings are in a horizontal position, otherwise use a hand board to reach a horizontal position;

2. Use clips to place the test sample on both wings; All stand outside the safety line.

3. Gently press the up button to raise both wings to the desired test height. Press the stop button again to stop the ascent.

4. Press the drop button to test the free fall of the object, complete the test, and record the state of the sample after the drop test;

5. Conduct other product tests according to the 2 to 4 testing methods mentioned above, and perform free drop tests based on the required surface, angle, and edge.

6. Attention: Do not stand on the workbench during the drop test! danger

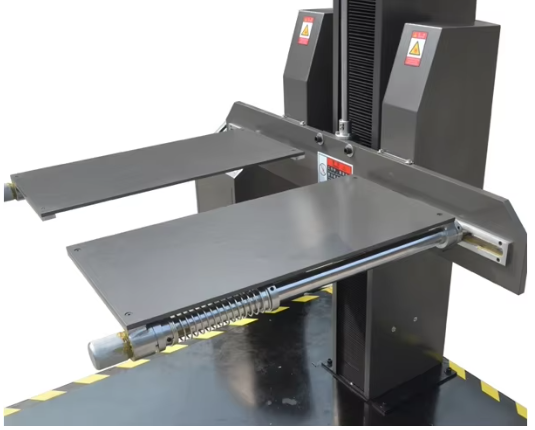

UP-3002 Automatic Dual-arm Drop Tester (2)

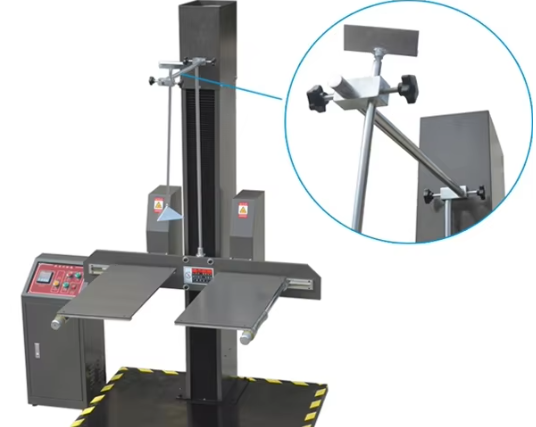

UP-3002 Automatic Dual-arm Drop Tester (3)

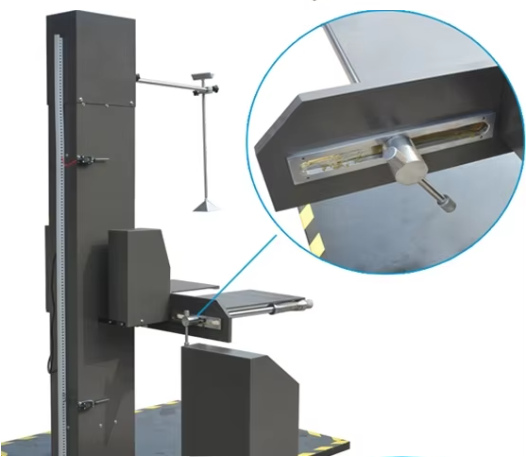

UP-3002 Automatic Dual-arm Drop Tester (4)

Previous: UP-3002 Double Wing Packaging Drop Impact Tester

Next: UP-3007 Glass Bottle Glass Jars Impact Tester With Robust Pendulum Hammer

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
