IK Impact Tester UP-3012

Product Overview:
IK impact tester is used to determine the IK protection rating of electrical and electronic product enclosures. Adopting standard pendulum and vertical free-fall impact principles, the machine delivers precise and controllable impact energy to test product shell toughness, structural strength and anti-damage capability. It covers full-range IK grade testing from low energy to high energy impact, features accurate height calibration, stable impact output and excellent test repeatability.

Standards:
IEC 62262 Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)
IEC 60068-2-75 Environmental testing – Part 2-75: Tests – Test Eh: Hammer impact tests
EN 50102 Degrees of protection against external mechanical impacts for electrical equipment enclosures
GB/T 2423.55 Environmental testing for electronic products – Test methods for mechanical impact resistance

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Specification:

Item	Specifications
Applicable IK Grade	IK01-IK10 (IK11 optional)
Impact Energy Range	0.14J～50J
Impact Mode	Pendulum impact & vertical free fall impact
Height Accuracy	±1mm
Energy Accuracy	±2%

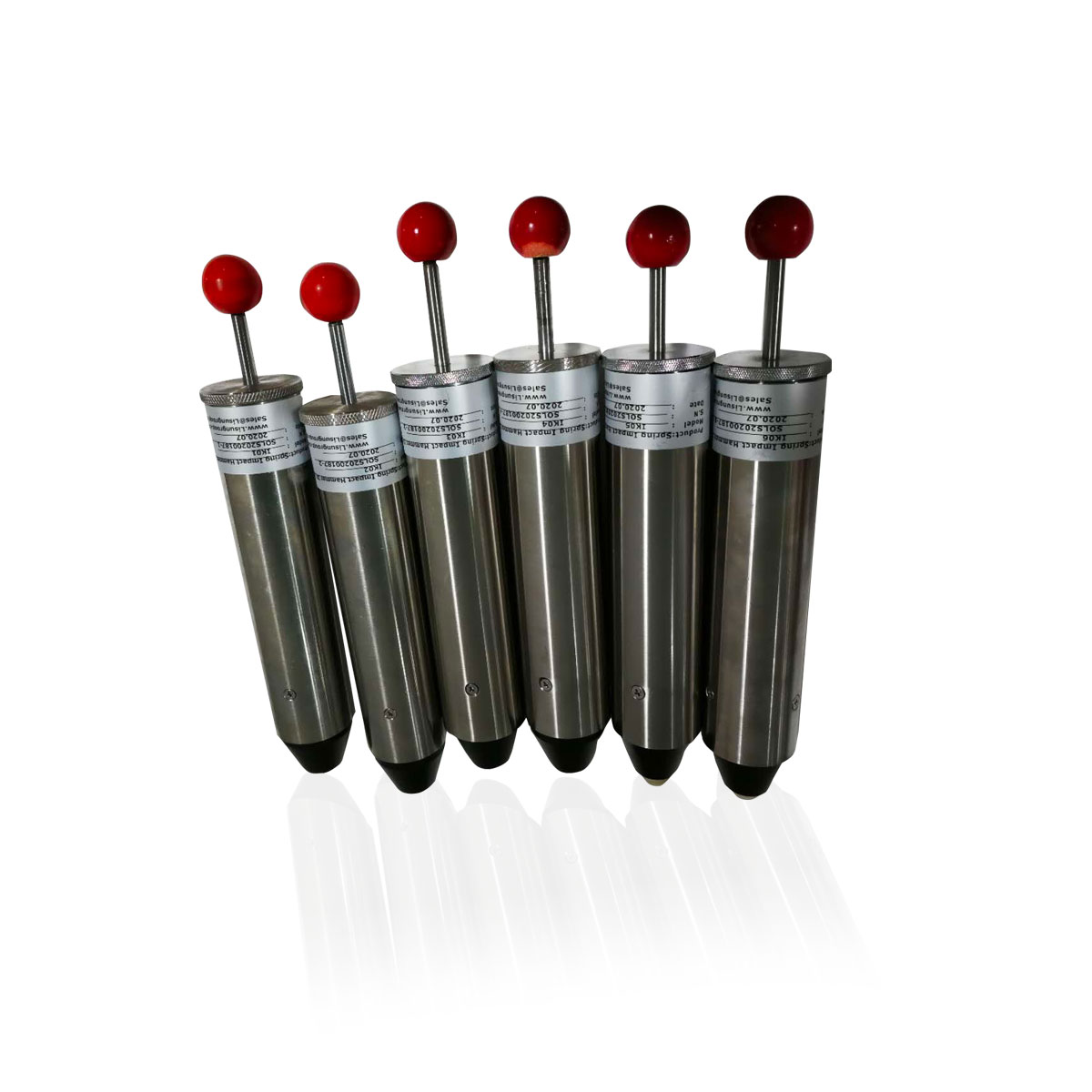

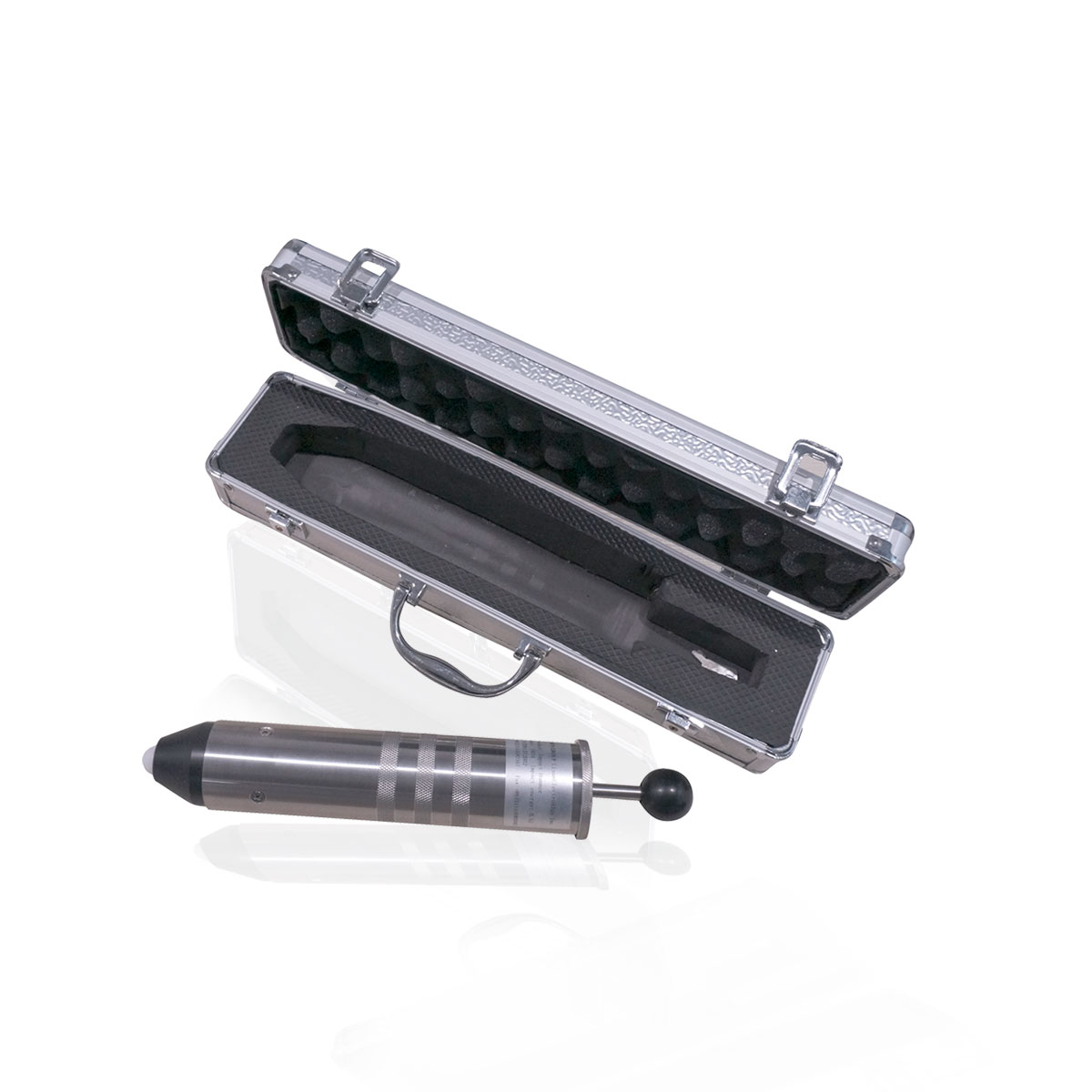

Striking Element	Standard steel hammer & plastic hammer for different IK levels
Impact Times Setting	1-99 times adjustable, continuous impact available
Operation Mode	Manual release / automatic release optional
Machine Feature	High stability, low noise, easy calibration and maintenance
Power Supply	AC220V 50Hz

Application:

Widely applied for product certification, quality inspection and structural optimization, it provides authoritative and reliable test data for industrial electrical, lighting and consumer electronic products.

Suitable for IK rating verification and mechanical impact resistance testing of various equipment enclosures across multiple industries, widely used in factory laboratories and third-party certification institutions,such as Lighting Industry、electrical Industry and consumer electronics etc
