UP-2004 High low temperature tensile tester

Product Introducation:

High low temperature tensile tester adopts integrated design, supporting accurate tension and compression tests under ambient to 150℃ temperature conditions. Equipped with PID intelligent temperature control and multi safety protection, it delivers stable and repeatable test data. Complying with ISO, ASTM and GB standards, it is widely applied for mechanical performance testing of plastics, rubber, composites and auto parts, ideal for laboratory R&D and industrial quality inspection.

Standards:

ISO 527, ISO 37, ASTM D638, ASTM D412, GB/T 1040, GB/T 528, GB/T 7759, GB/T 1447

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Features:

Universal testing host and high-low temperature chamber, realizing tensile & compression tests under variable temperature environments in one machine.

PID intelligent temperature control system, temperature range from ambient temperature to 150℃, heating rate 2–3℃/min, equipped with leakage and overload protection for safe operation.

Real-time synchronous recording of force, displacement and stress-strain curves under high/low temperature conditions, automatic generation of complete test reports.

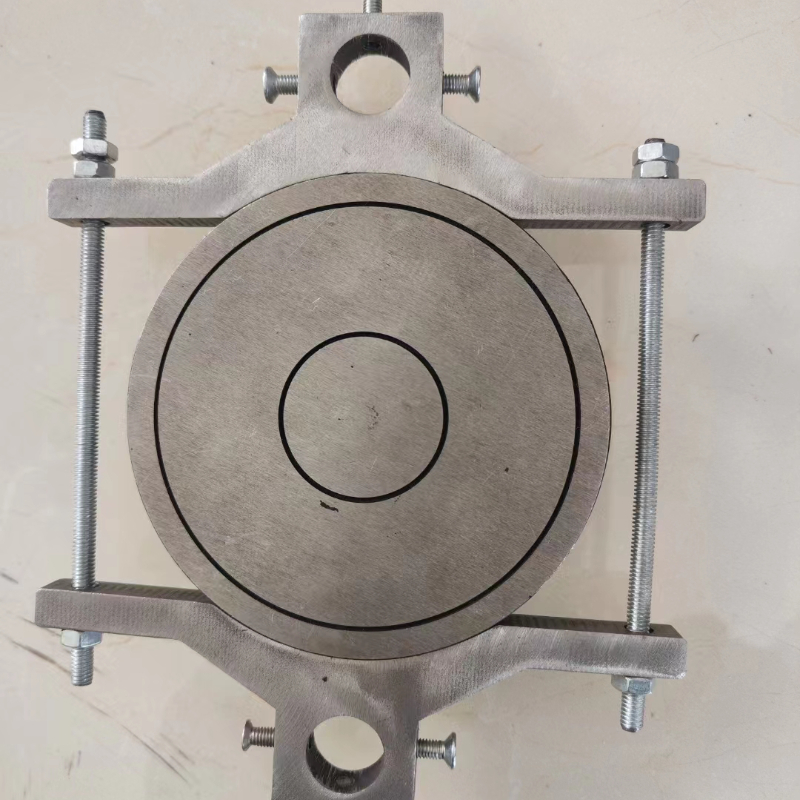

UP-2004 High low temperature tensile tester (1)

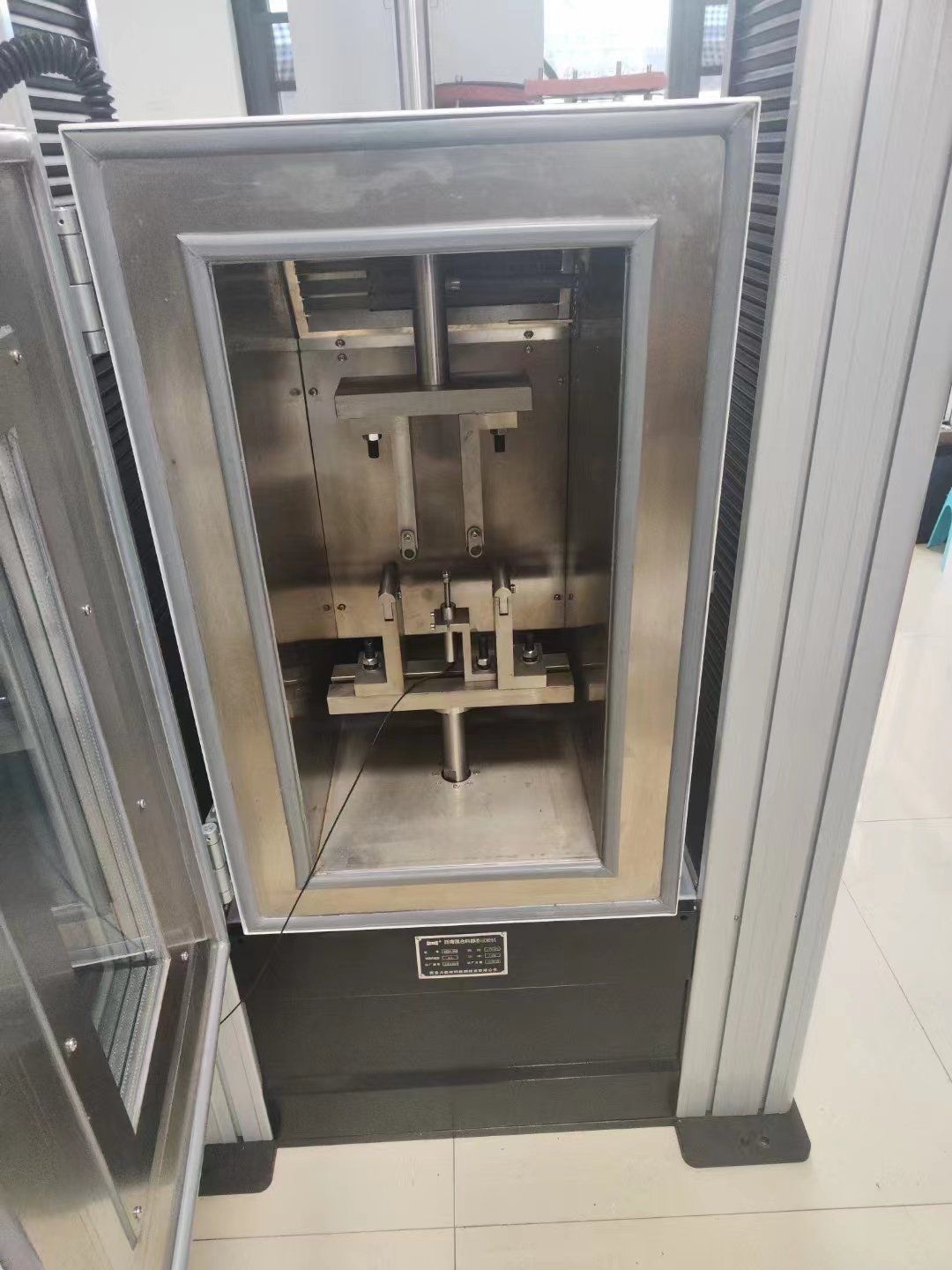

UP-2004 High low temperature tensile tester (2)

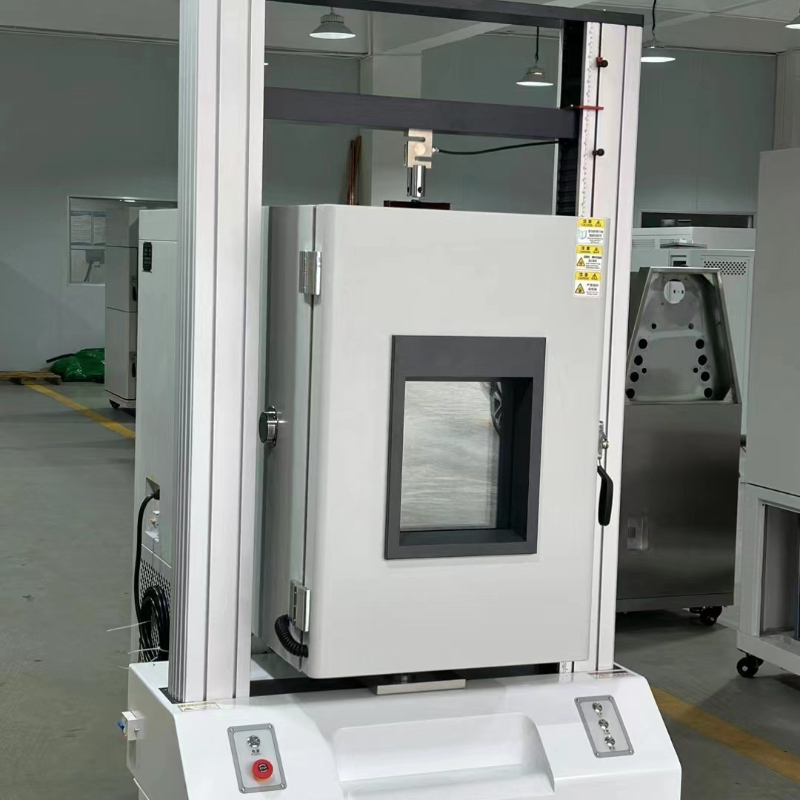

UP-2004 High low temperature tensile tester (5)

Specification:

Item	Value
Model	UP-2004
Maximum Test Force	10KN
Measurement Range of Test Force	2%-100%
Testing Machine Accuracy Grade	1
Accuracy of Test Force	≤ ± 1%
Crosshead Displacement Resolution	0.01mm
Adjustable Speed Range	0.01-500mm/min
Tensile Test Space	800mm
Compression Test Space	1100mm
Effective Width	370mm
Control Method	PID Control Method
Heating Method	Heating Tube
Temperature Range	Room temperature ~ 150°C
Heating Rate	2~3°C/min
Safety Device	Leakage and Overload Protection
External Dimensions	900mm × 440mm × 780mm
Internal Dimensions	360mm × 225mm × 620mm
Weight	350kg
Power Supply	AC 220V 50HZ 3KW

Previous: UP-2003 100kN Computer Controlled Universal Tensile Testing Machine for Metal Composite Material Test

Next:

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
