Carton Pallet Compression Tester UP-6035

Product Introduction:

UP‑6035 Carton Pallet Compression Tester is a professional packaging compression resistance testing instrument. It applies continuous and uniform vertical pressure to cartons, palletized packages and packaging containers, to test compression strength, stacking safety load and deformation under long‑term stacking load. By simulating real‑world stacking pressure in warehouse storage and transportation, it helps evaluate packaging stacking safety and optimize box structure to prevent collapse damage. Equipped with precision force sensor and PLC touch control system, it delivers stable loading and high‑accuracy measurement, with automatic data recording and report output.

Product Highlights:

1.Applies uniform vertical pressure for cartons and palletized packages; evaluates stacking safety performance

2.Two test modes: compression destruction test and constant‑load holding test

3.Multiple optional test force range:5kN /10kN /20kN /50kN; force accuracy ±1% FS

4.PLC + touch‑screen control; data auto‑save, optional PC report export

5.Customizable test space; built‑in overload‑protection and anti‑tilt mechanical structure

6.Meets multiple international standards for packaging certification test

Testing Standards:

ISO 12048, ASTM D6995, ASTM D4577, ISTA 1A / 1B / 2A / 3E, GB/T 4857.3

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

FAQ

Q1: What samples can UP‑6035 carton pallet compression tester test?

A: It is used for cartons, palletized packages and various packaging containers to measure compression strength, stacking safety load and long‑load deformation.

Q2: What test modes does this machine support?

A: It supports compression destruction test and constant‑load holding test for different packaging evaluation requirements.

Q3: Can the test space and test force be customized?

A: Yes. Test space can be customized; multiple test‑force ranges are optional, and power supply can also be adjusted on request.

Q4: Which standards does this equipment comply with?

A: It complies with ISO 12048, ASTM D6995, ASTM D4577, ISTA series and GB/T 4857.3 for packaging compression certification tests.

Specification

Item	Specification
Test Force Range	5kN / 10kN / 20kN / 50kN (Optional)
Force Accuracy	±1% FS
Test Space (W×D×H)	1200×1200×1500mm (Customizable)
Loading Speed	1~20 mm/min Adjustable
Test Mode	Compression Destruction Test / Constant Load Holding Test
Control System	Touch Screen + PLC Precision Control
Data Output	Automatic saving, PC report export (Optional)
Working Environment	0℃~40℃, Humidity ≤80% Non-condensing
Power Supply	AC220V 50Hz / Custom 380V
Core Advantage	Uniform pressure loading, overload protection, anti-tilt structure, meets international certification

Application

Widely used for packaging quality inspection, incoming material verification, packaging structure optimization and third-party laboratory certification, it helps manufacturers effectively avoid package deformation, collapse and cargo damage during logistics and storage.

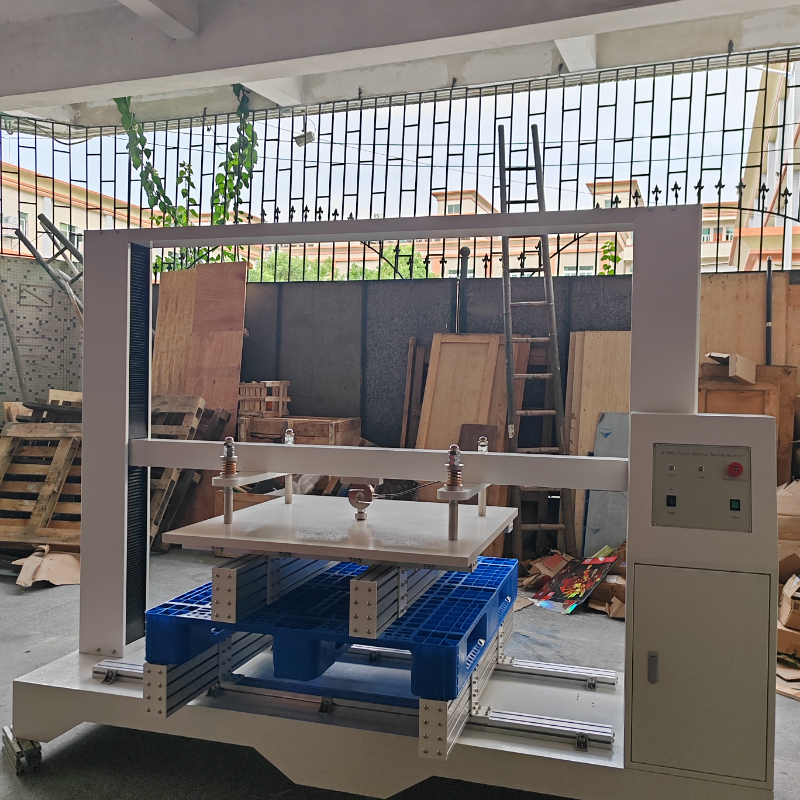

UP-6035 Carton Pallet Compression Tester (2)

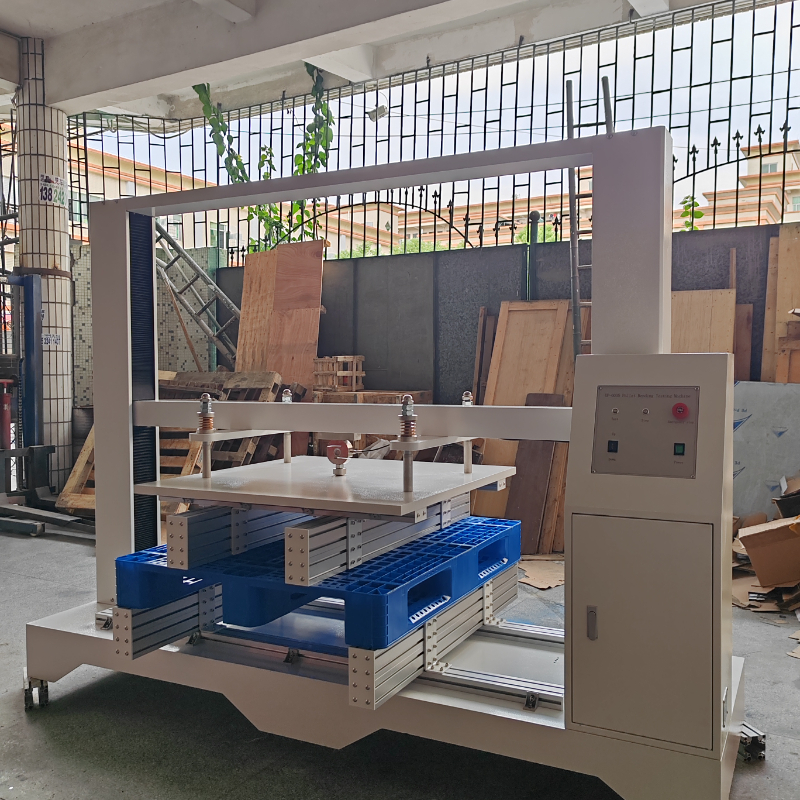

UP-6035 Carton Pallet Compression Tester (3)

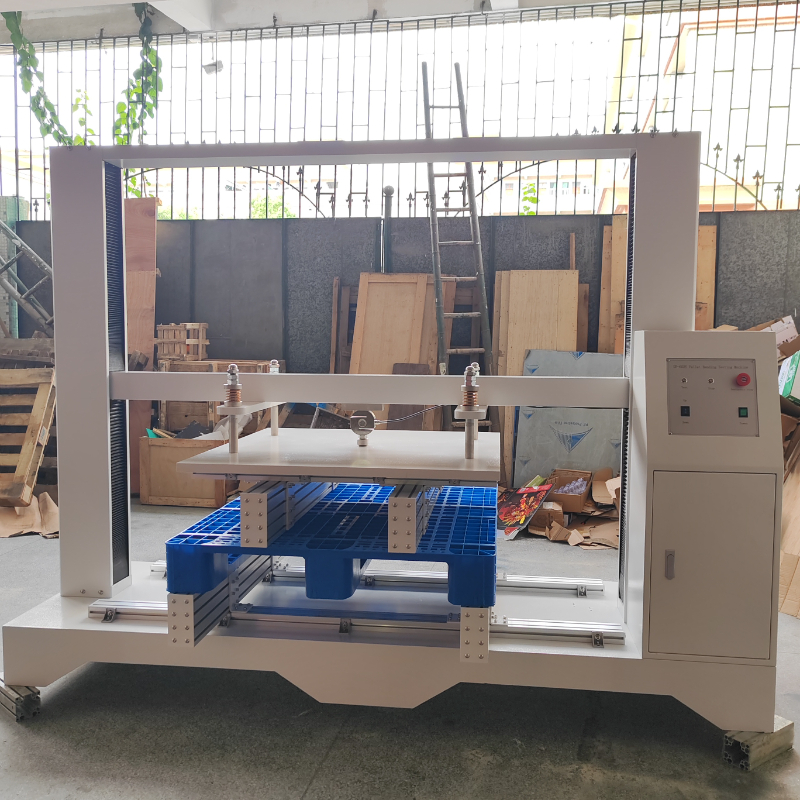

UP-6035 Carton Pallet Compression Tester (1)
