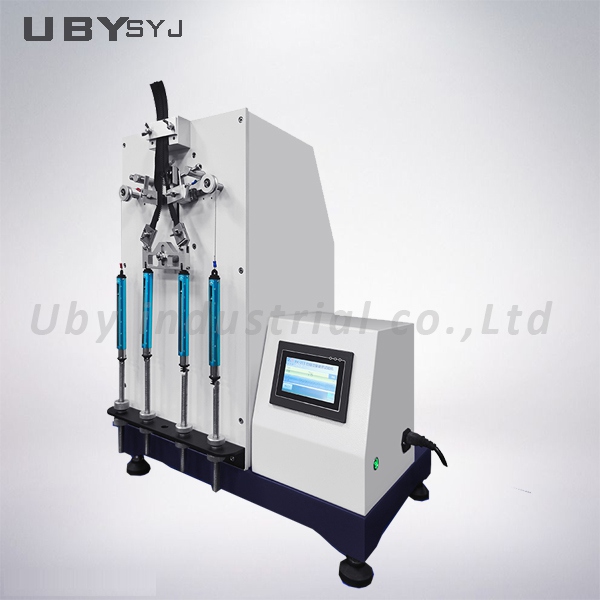

Zipper Fatigue Pulling Tester UP-4008

Model: UP-4008

Test: Zipper reciprocating fatigue

Frequency: 30 cpm

Stroke: 75 mm

Power: 1-phase 220V, 50Hz

Size: Approx. 30×55×68 cm

Weight: Approx. 35 kg

Standard: CNS 1083, QB/T 2171

Customizable: Yes

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Product Introduction

The zipper fatigue pulling tester applies cyclic pulling load on zipper samples to evaluate fatigue life and failure performance under repeated pulling force. It complies with CNS 1083 and QB/T 2171, ideal for durability verification of zippers used in footwear, garments and luggage. It is essential QC equipment for zipper manufacturers.

Product Highlights

Continuous pulling fatigue test for zippers
Real-time pulling force display
High-precision cycle counting

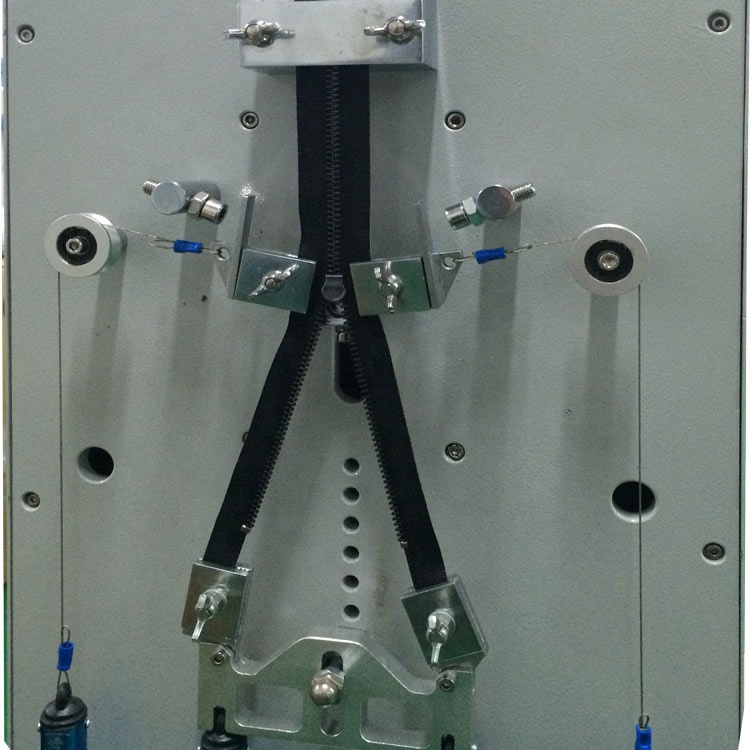

Quick-release sample fixture
Compact structure, easy operation

Technical Parameters

Item	Specification
Product Name	Zipper Reciprocating Fatigue Pull Tester
Vertical Fixture Width	25 mm
Vertical Fixture Weight	0.28~0.34 kg
Distance Between Two Vertical Fixtures	6.35 mm
Reciprocating Stroke	75 mm
Reciprocating Frequency	30 cpm
Specimen Closed Angle	60°
Specimen Opening Angle	30°
Counter	6-digit
Motor	1/4 HP
Power Supply	1-phase, 220V, 50Hz
Overall Dimension (W×D×H)	Approx. 30 × 55 × 68 cm
Net Weight	Approx. 35 kg

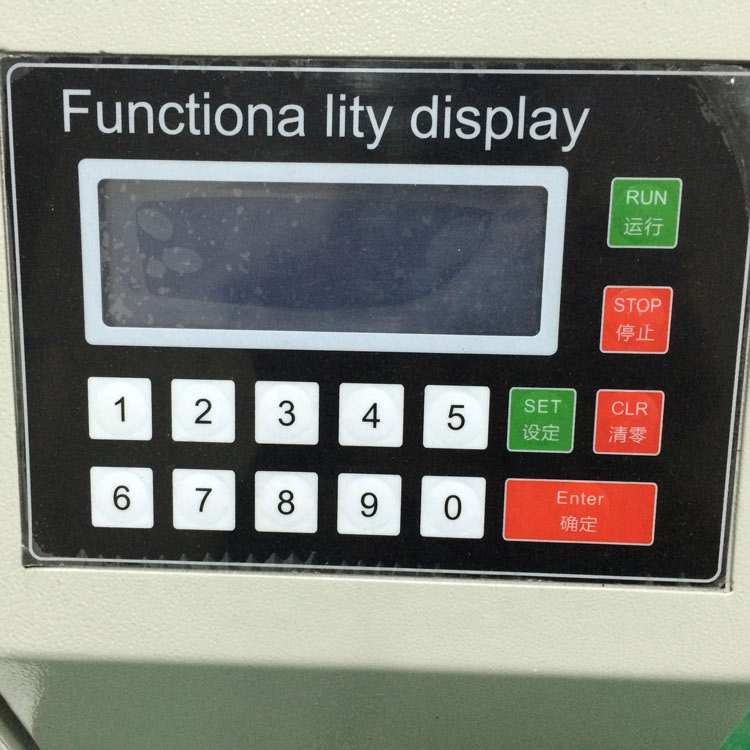

Control panel of UP-4008 zipper reciprocating fatigue pulling tester, digital counter setting

Product Application

Widely used for durability and fatigue test of zippers for luggage, shoes, clothing and leather goods, suitable for laboratory QC and factory incoming quality inspection.

Compliance Standards

CNS 1083，QB/T 2171

FAQ

Q: What is the test speed of this zipper fatigue tester?

A: The reciprocating frequency is fixed at 30 cpm.

Q: Which zipper products is this machine suitable for?

A: It is suitable for garment, footwear and luggage zippers.

Q: Does the machine stop automatically after reaching the set cycles?

A: Yes, it will stop automatically once the preset cycle count is reached.

Q: Can we customize the fixture for special zipper samples?

A: Customized fixtures are available upon request.

Q: What standard does this tester follow?

A: It meets CNS 1083 and QB/T 2171 zipper test standards.
