Single Arm Drop Test Machine UP-3001

Single Arm Drop Test Machine for Transport Package Edge Corner Surface Drop Resistance Testing

Single wing drop tester adopts a single arm double column structure, with electric reset, electric drop and electric lifting devices.

Single wing drop tester can perform free drop tests on the surface, corners, and edges of packaging. It is equipped with a digital height display and a decoder for height tracking, which can accurately provide the product’s drop height and preset drop height. Errors will not exceed 2% or 10 millimeters.

The single arm setting allows for easy placement of products, and the impact angle between the falling impact surface and the bottom plate plane is less than or equal to 5 °.

The unique buffering device greatly improves the service life, stability, and safety of the machine.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Application :

1. Single wing drop impact tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.

2. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.

Features :

Unique swing arm mechanism design, swing arm break away from acceleration more than 3 G/SEC.With double column guide and hydraulic buffer absorb residual swing arm force, movements smooth, reliable, low noise.Damping screw lifting mechanism, preventing drop institution unexpectedly glide.Pneumatic automatic chain, preventing swing arm unusual break away.Extensible support bracket and baseboard.

Specification:

Model	UP-3001
Drop height range(mm)	300~2000MM
Specimen max.weight(kg)	85
Specimen max. size(mm)	800800800
Drop mode	Freedom
Machine Dimension(mm)	230022002650
Machine weight	800kg
Power supply	AC380V 50Hz compressed air 0.5~0.7Mpa
Standards	ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27

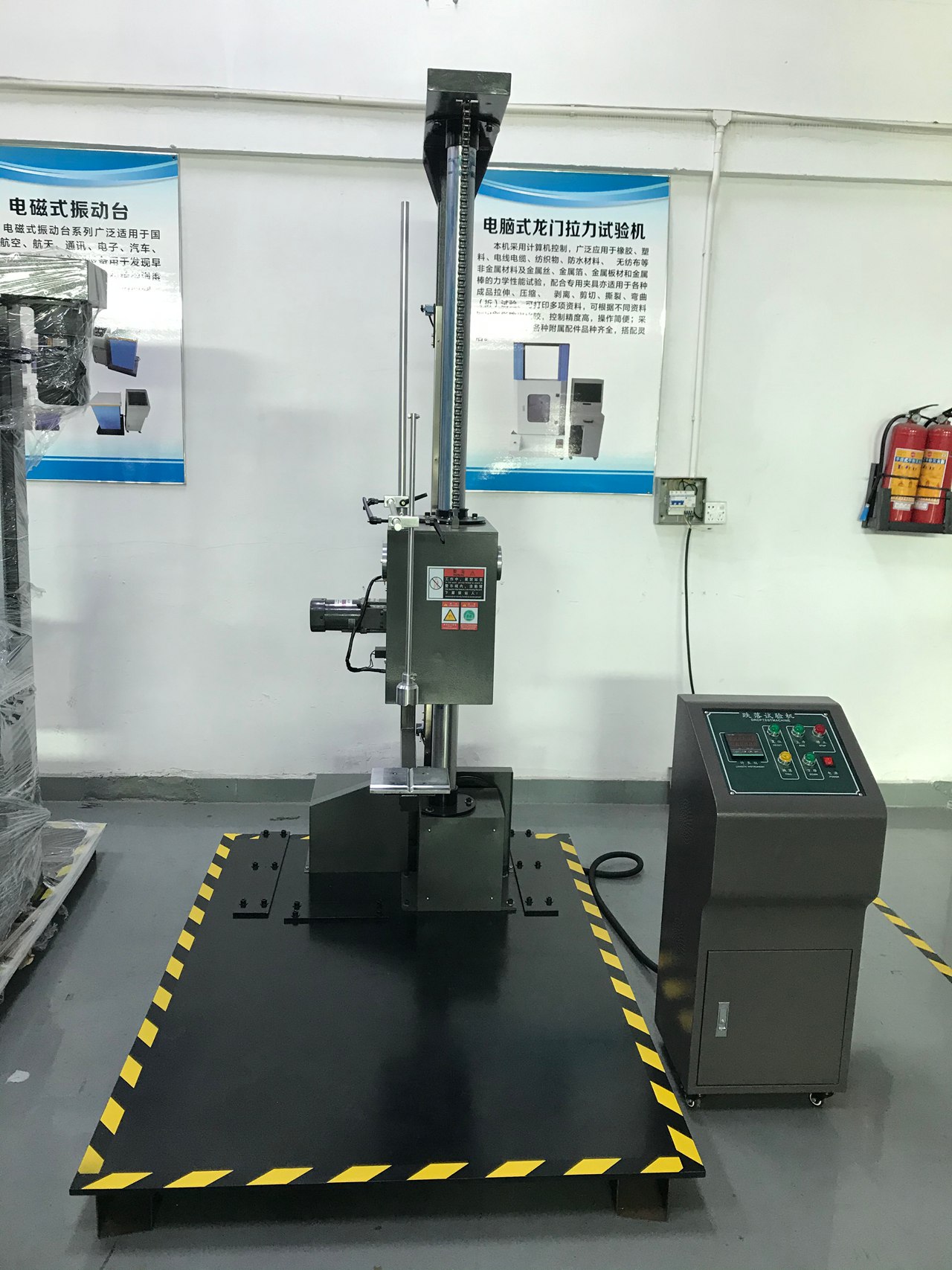

UP-3001 Single Arm Drop Test Machine (3)

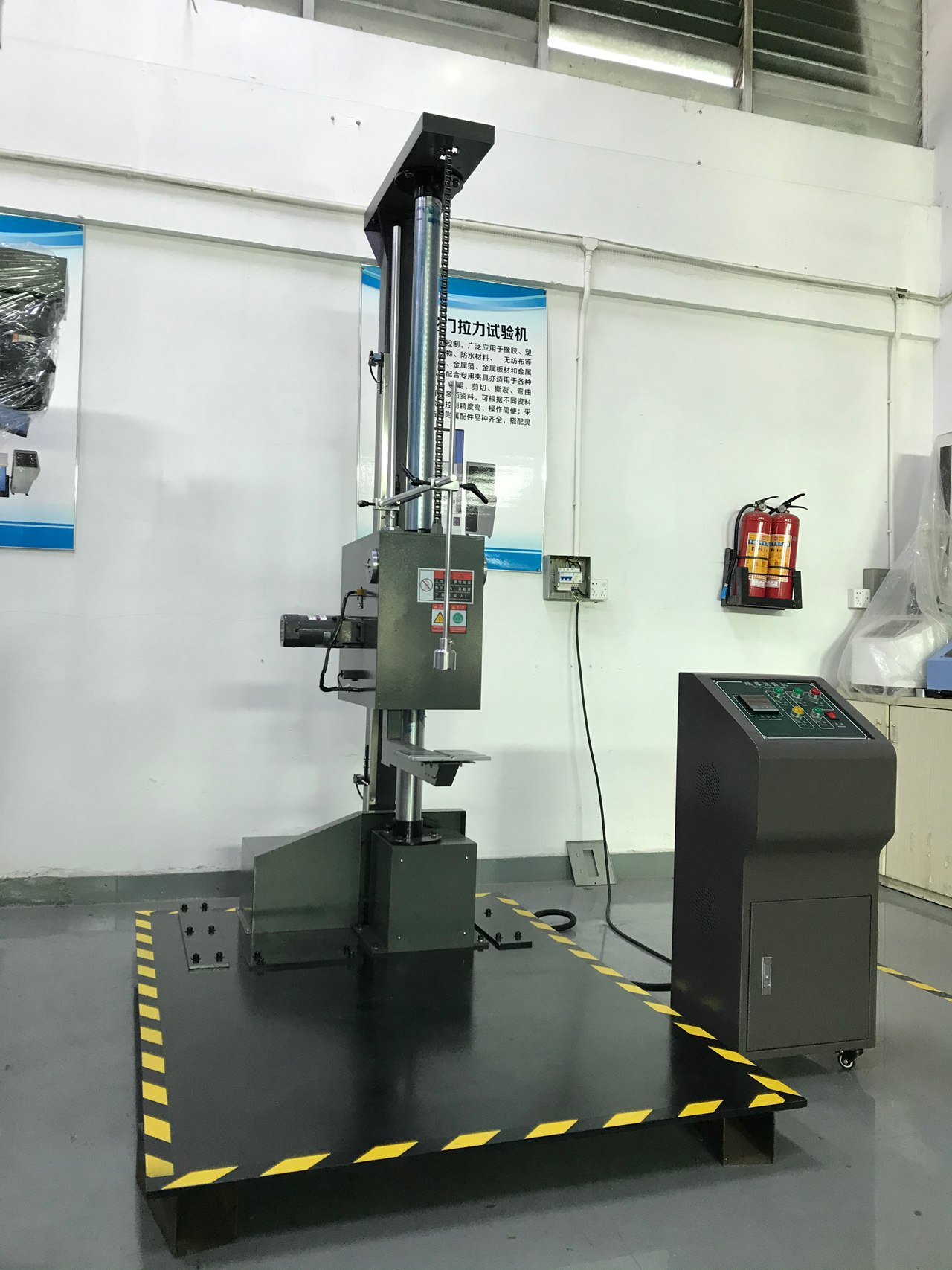

UP-3001 Single Arm Drop Test Machine (2)

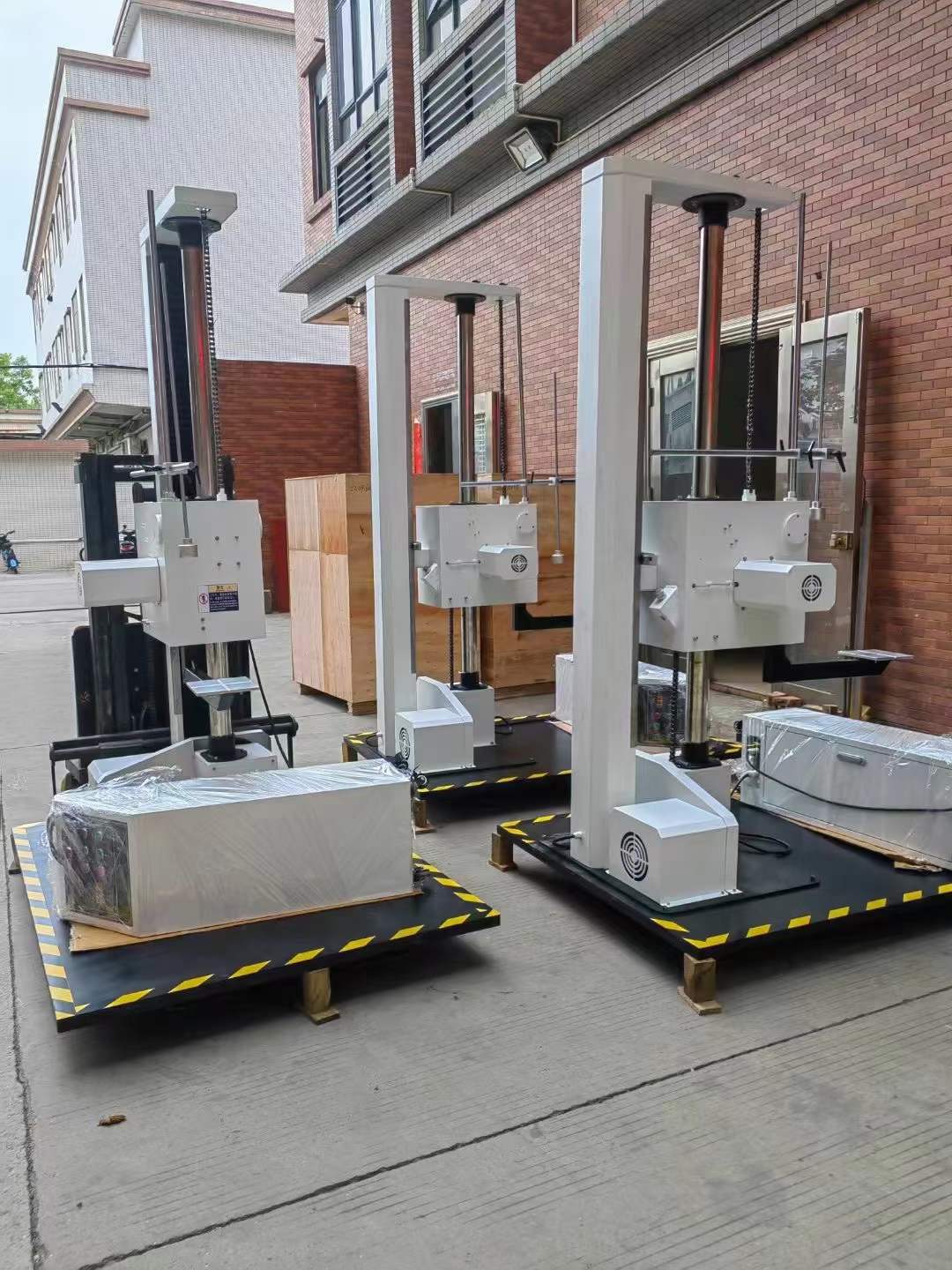

UP-3001 Single Arm Drop Test Machine (1)

Previous: Reciprocating Linear Abrasion Tester ASTM D3884 For Textile Coating UP-1012

Next: Single Wing Drop Tester UP-3001

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
