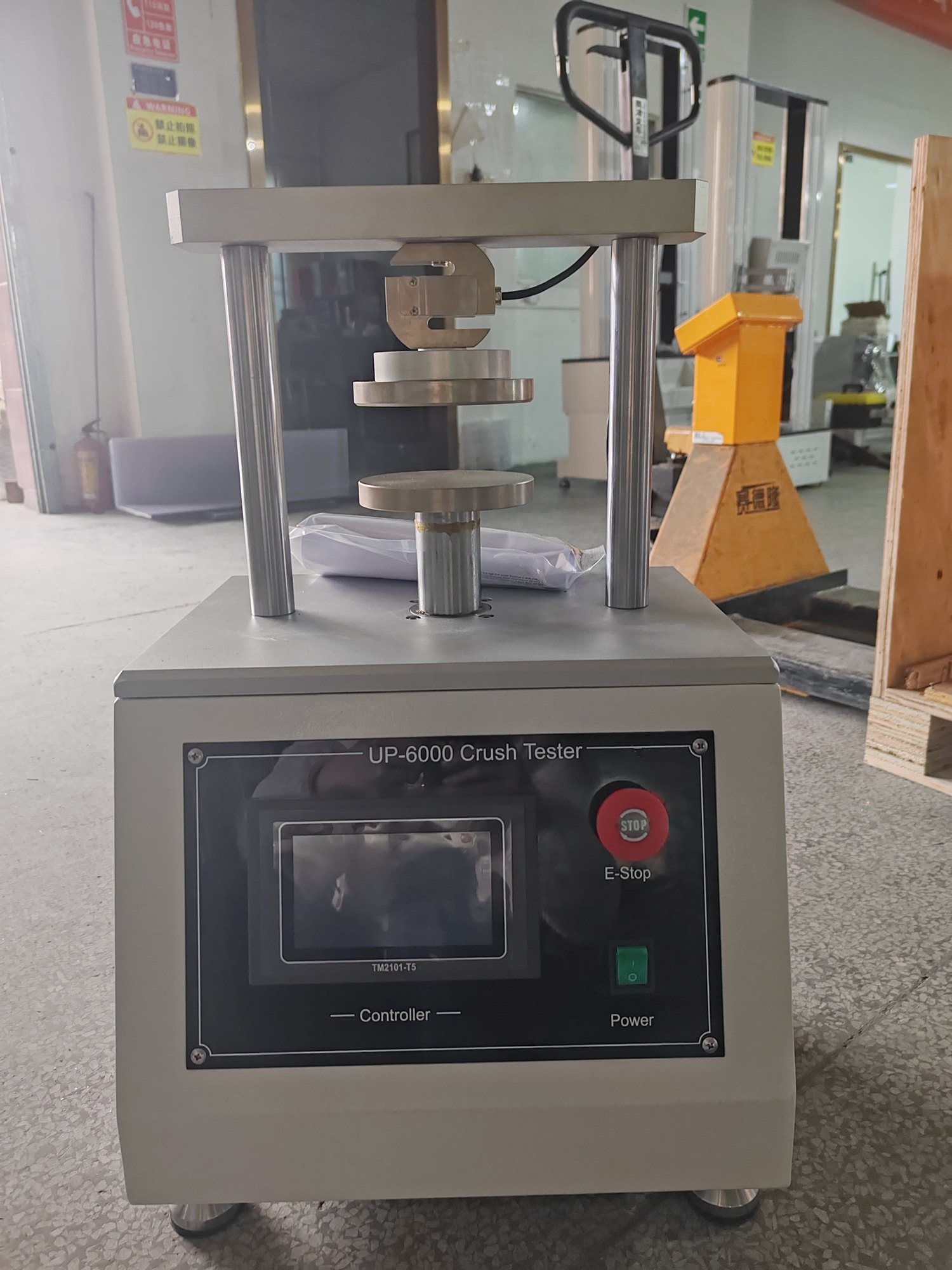

Crush Tester UP-6000

Product Introduction：

Crush Tester is a desktop compression tester for paper, cardboard and corrugated packaging materials. It performs Ring Crush Test (RCT), Edge Crush Test (ECT) and Flat Crush Test (FCT). Equipped with high-precision load cell and 7-inch touchscreen control system, it features stable test speed, automatic data recording, calculation and report output. Its compact double-column design ensures simple operation and strong anti-interference, suitable for incoming inspection, production QC and laboratory research in packaging industry.

Product Highlights：

1.Supports three packaging compression tests: RCT, ECT and FCT

2.High-precision load cell with 7-inch touch screen for easy operation

3.Automatically records, calculates data and generates test reports

4.Compact vertical double-column structure, excellent anti-interference performance

Compliance Standards：

ISO 12192, ISO 3035, TAPPI T818, TAPPI T839, GB/T 2679.8

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Application:

Packaging industry: Corrugated cartons, cardboard boxes, honeycomb boards, paper tubes

Paper manufacturing factories: Base paper, kraft paper, liner board, corrugated medium paper

Printing & packaging enterprises, packaging design R&D departments

Third-party material testing laboratories, quality supervision and inspection institutions

Food, electronics, logistics, furniture and other product packaging quality control

Carton factories, paper product processing plants, packaging material suppliers

Specification:

Item	Specification
Model	UP-6000 Crush Tester
Test Modes	RCT Ring Crush, ECT Edge Crush, FCT Flat Crush
Force Measuring Range	0 ~ 5000 N
Test Force Accuracy	±0.5% FS
Compression Speed	12.5 mm/min (Standard constant speed)
Press Plate Diameter	φ100 mm
Maximum Test Stroke	70 mm
Control System	Color Touch Screen + PLC Intelligent Control
Data Output	Automatic calculation, storage, data export and report printing
Overload Protection	E-stop emergency stop button, overload automatic protection
Power Supply	AC 220V 50Hz
Overall Dimension	420(L) × 380(W) × 620(H) mm
Net Weight	45 kg
Working Environment	Temperature 10℃~35℃, Humidity 45%~75% RH

Previous: Heel Rise Type Finished Shoe Bending Tester UP-4036

Next: Automatic Packaging Bursting Strength Tester UP-6002

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
