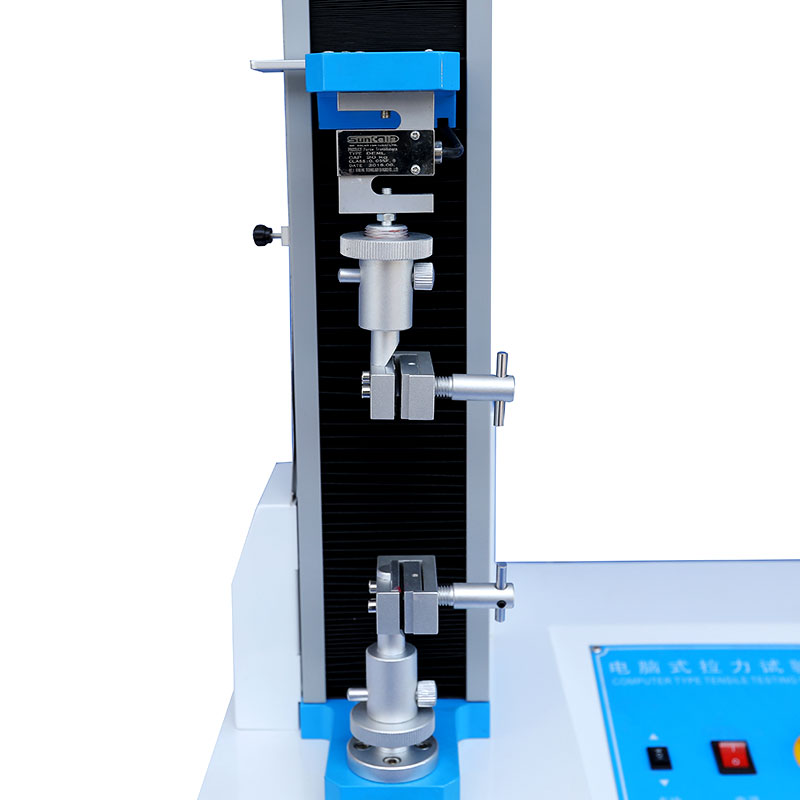

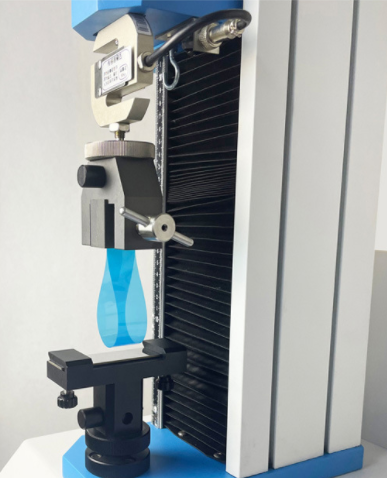

UP-8003 Probe Type Initial Adhesion Tester

Product Intoduction:

Probe viscosity tester is one of the methods to test the initial adhesion of tape, mainly used for the initial adhesion test of various tapes, adhesives and other different products, the product conforms to ASTM D2979 and other standards, suitable for all kinds of scientific research institutions, self-adhesive enterprises, inspection and quarantine institutions.

Test principle:

Probe type initial adhesion meter is a fixed speed probe and test sample completely contact (stagnation interval 1 second), the instrument will automatically reverse at a constant speed and test plate completely separated, the maximum force value is the initial adhesion of the probe to the test sample.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Features:

1. The data acquisition system is convenient to use and is the most advanced measuring instrument at present.

2. Using computer control technology, high precision, easy to operate.

3. Adopt high precision sensor, the degree can reach 0.1% of the weight standard of the sensor.

4. Advanced silent motor and precision ball screw, smooth transmission, more accurate displacement measurement.

5. Full computer operation display, test data at a glance.

6. With the function of maintaining the test force value, it is more convenient to view the experimental results.

Product Parameter:

Load range	0-50N
Measurement accuracy	±1% measurement error
Resolution	0.01N
Test stroke	200mm
Speed control range	1mm/min~800mm/min
Testing machine size	360mm(B)×380mm(L)×520mm(H)
Power supply	220V, 50Hz
Weight	75kG
Loading speed	0.5-500mm/min)
