UP-6200 IEC61215 Photovoltaic Module UV Pre treatment Testing Equipment

Compliant With IEC61215 Photovoltaic Module UV Pre treatment Test Machine

Introducation:

The ultraviolet aging tester for photovoltaic modules is specifically designed to simulate the damaging effects of ultraviolet (UV) radiation from sunlight that modules experience during prolonged outdoor exposure. By subjecting test samples to controlled UV irradiation, this equipment can reproduce the aging effects that would otherwise take months or even years of natural weathering—all within just a few days or weeks. It provides an efficient, accelerated testing solution for evaluating the UV resistance and long-term durability of module materials, ensuring reliability and performance in real-world operating conditions.

Appliaction:

Photovoltaic Module UV Pre-treatment Testing Chamber is mainly used for various testing requirements of IEC61215, IEC61646 UV pre-treatment testing, and bypass diodes.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Specification:

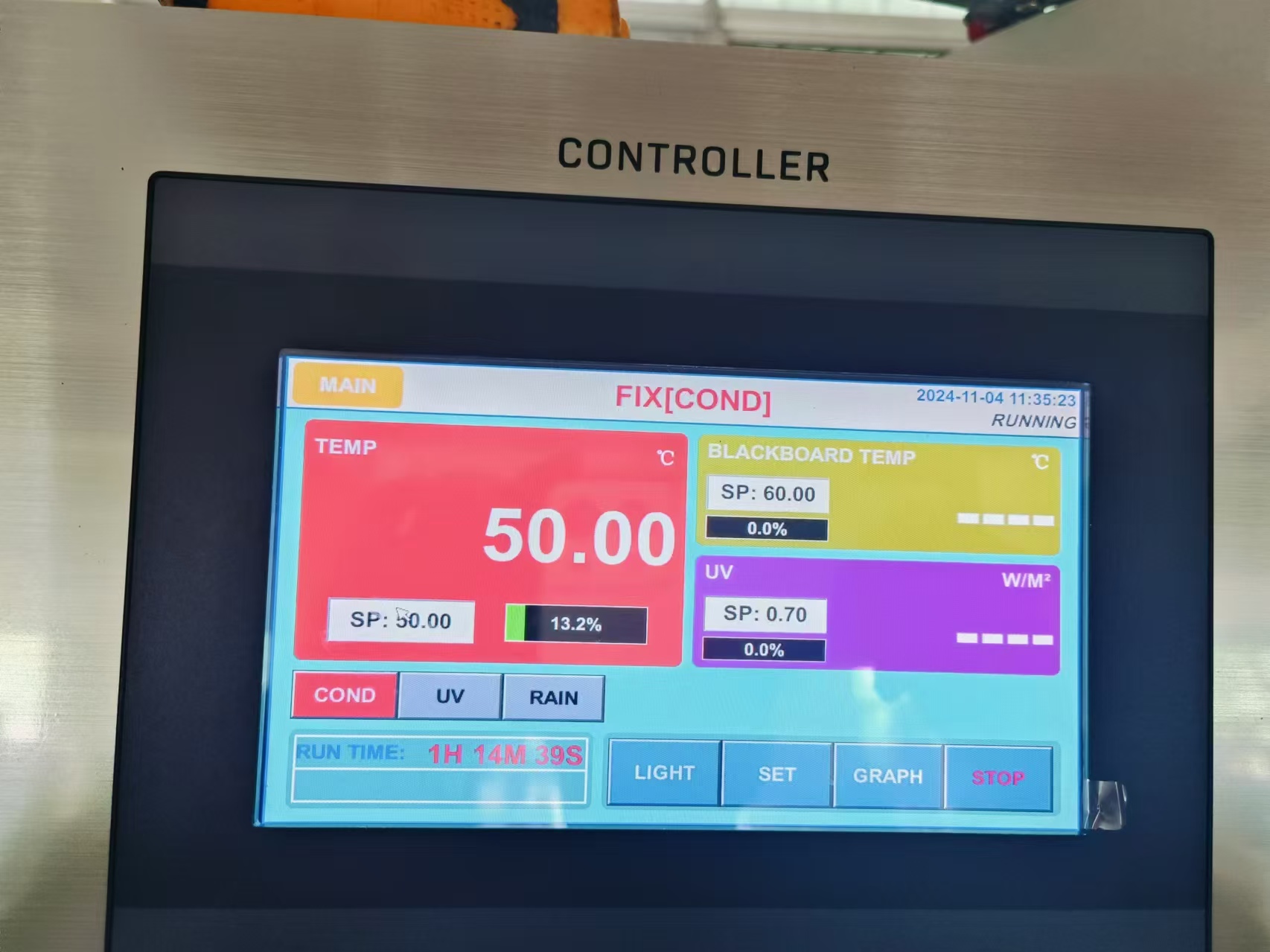

Compliant With IEC61215 UV Pre treatment Test Machine (2)

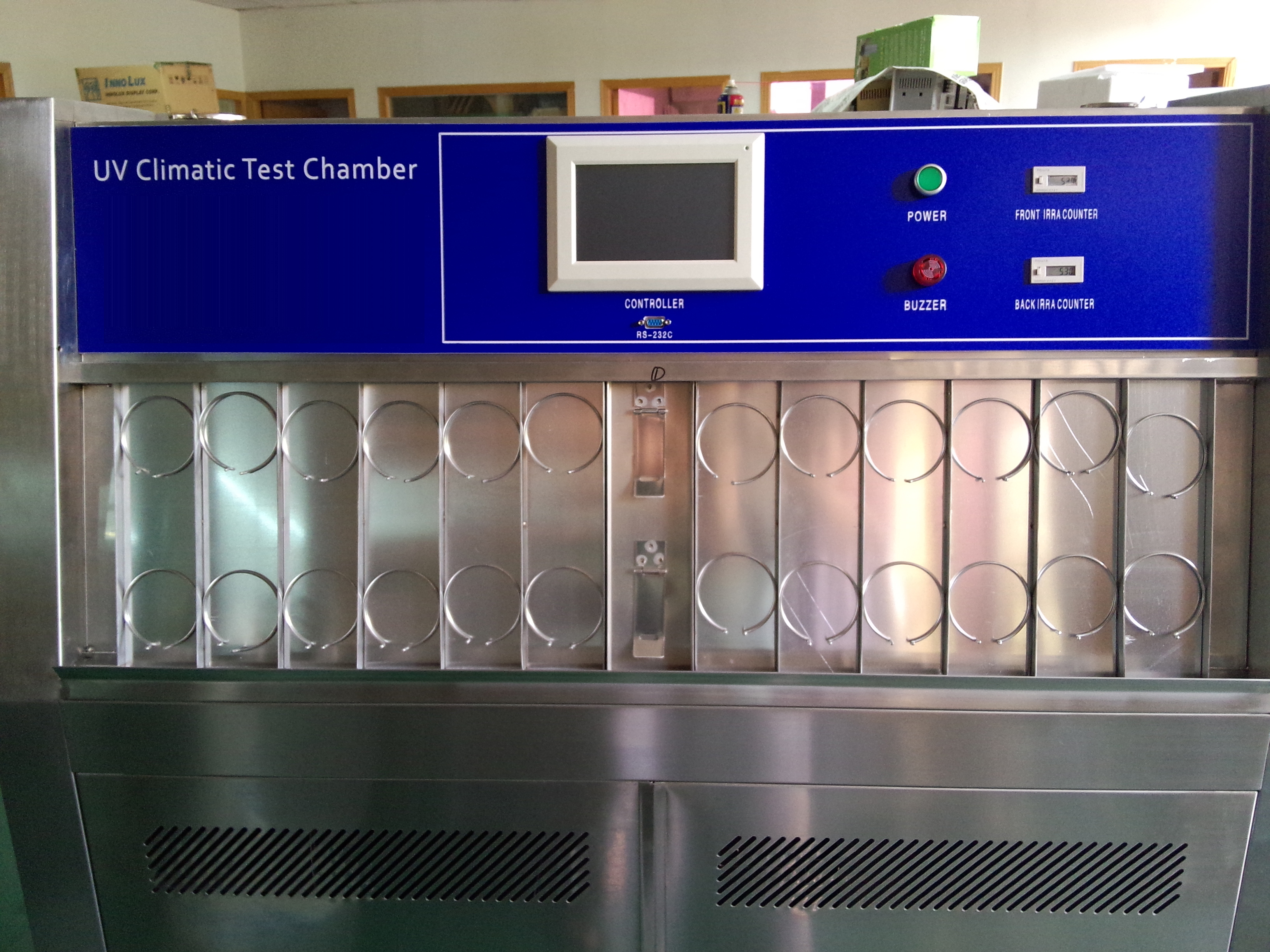

Compliant With IEC61215 UV Pre treatment Test Machine (3)

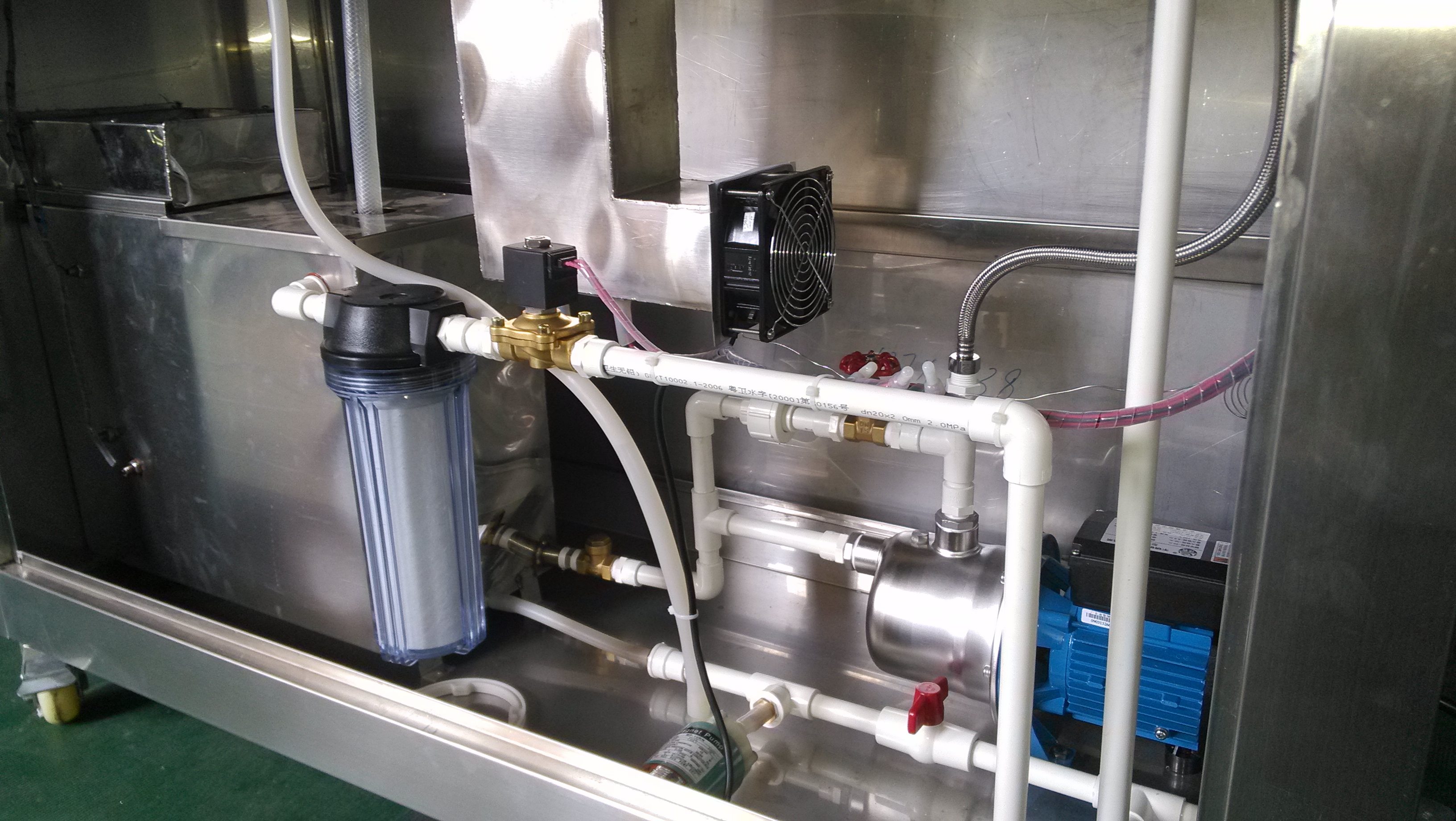

Compliant With IEC61215 UV Pre treatment Test Machine (1)

1. Materials used: High quality materials that can block ultraviolet rays, have good sealing and insulation properties

2. Total UV irradiation area of the equipment: greater than 2000mm x 2000mm, meeting the simultaneous testing of two 2m x 1m components (can be made according to customer requirements)

3. Light source lifespan: The system uses metal halide lamps with a lifespan of approximately 1000 hours.

4. Relative energy ratio of UVA and UVB for each lamp: UVB accounts for approximately 3% to 10% of the total energy

5. Radiation intensity: The radiation intensity at wavelengths of 280nm to 385nm can reach around 100W/m ² to ensure the shortest possible testing period

6. Radiation uniformity: better than ± 15%

7. Real time monitoring and display of UVA and UVB intensity

8. One UVA (320nm~385nm) and one UVB (280nm~320nm) fiber optic probe

9. Module surface temperature: 60 ° C ± 5 ° C

10. Temperature resolution: 0.1 ° C

11. Ozone: Almost no ozone is produced

12. Lighting method: emits light upwards, with the component testing plane perpendicular to the light source

13. Touch screen control and real-time monitoring, and automatically cut off the light source when the set value is reached

14. Real time graphical display of component surface temperature with measurement accuracy of ± 0.1 ºC.

Previous: UP-6196 High-precise Burn-in Oven

Next:

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
