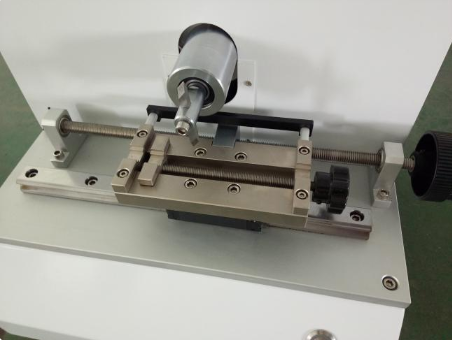

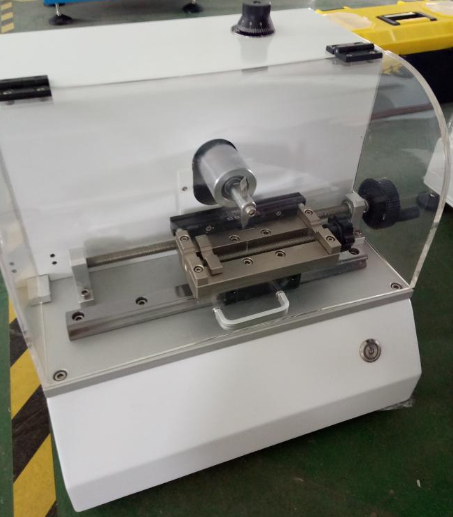

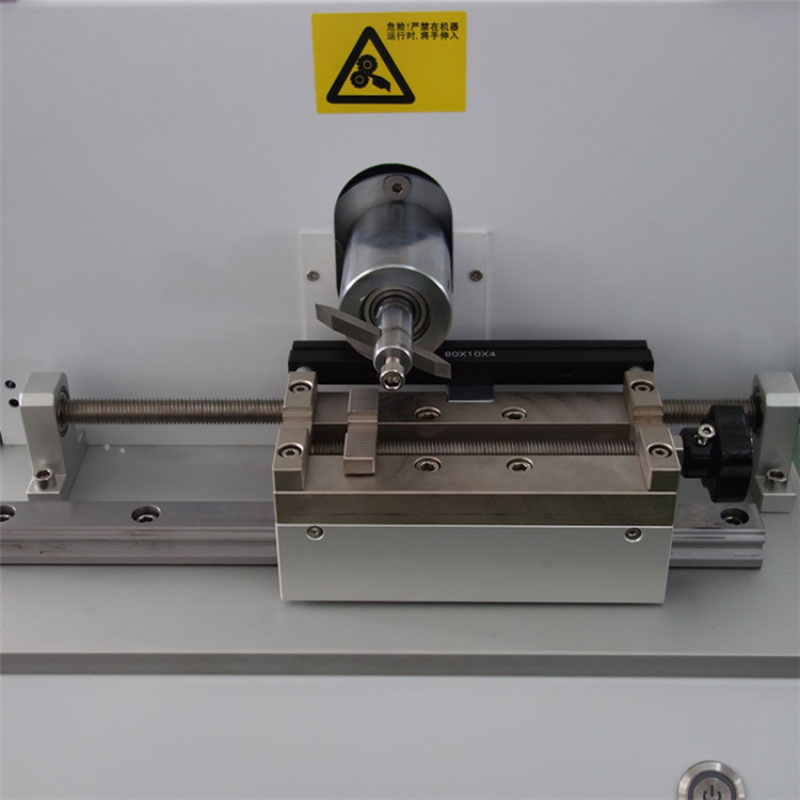

UP-5011 Notch sample making machine

Product Introducation:

Notch sample making machine is a professional precision specimen preparation device specially developed for material impact toughness testing.

It is mainly used to process standard V-type and U-type notches on non-metallic and partial metallic test specimens, supporting Charpy and Izod impact test sample production.

Adopting high-precision mechanical milling and stable speed control structure, the machine features smooth notch cutting, burr-free specimen surface, accurate dimensional consistency and excellent repeatability.

With simple operation, stable performance and durable cutting tools,fully meeting the rigorous sample making requirements of material impact tests.

Standards:

ISO 179, ISO 180, ISO 8256, ISO 2818,ASTM D256, ASTM D6110, EN 10045, DIN 53453

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Specification:

Item	Specification
Applicable Specimen Type	V-type / U-type notch specimens (Charpy & Izod impact test)
Feed Speed	30mm / min
Worktable stroke	> 90mm
Max Specimen Thickness	10mm
Notch Angle Accuracy	±0.1°
Notch Depth Tolerance	±0.02mm
Cutting Smoothness	Burr-free, smooth cutting surface
Operation Mode	Manual / Electric optional
Rated Power	0.37KW
Working Voltage	220V 50Hz
Machine Material	High-strength steel + corrosion-resistant stainless steel

Application :

Widely applicable for notch specimen preparation in impact toughness tests of various materials, covering multiple industrial scenarios and research institutions:plastic, rubber, composite materials, resin and polymer material testing;automotive, electronics, packaging, building materials and new energy product quality inspection; University laboratories, material research institutes, industrial R&D centers for material performance analysis and experiment.
