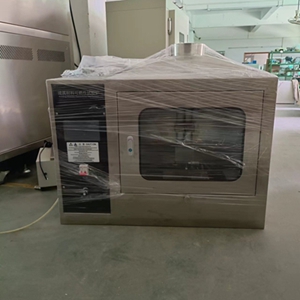

UP-5020 Flammability Testing Machine For Fireproof Building Materials

Product Introduction：

The flammability test furnace for building materials is to directly impact a vertically placed sample with a small flame in a normal combustion environment to determine the flammability of building products. The flammability test furnace for building materials uses the German Kleinbrenner (Kleinbrenner) principle.

Product Application：

It measures the combustion performance of Class B building materials under the direct impact of a small flame in the vertical direction (that is, for the combustion performance of building materials / flame retardant grade B level judgment).

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Standards:

GB/T8626 "Test Methods for Flammability of Building Materials" and

ISO 11925-2:2002 "Reaction to fire tests -- Ignitability of building products subjected to direct impingement of flame -- Part 2: Single-flame source test"

Scope of application:

It is applicable to the test method for judging whether the building material has flammability under the specified conditions.

Main parameters:

The whole set of configuration: the testing machine is composed of a control box, a combustion box body, a burner, a solenoid valve, a high-pressure igniter, a signal control line and a sample support;

Power supply voltage: AC220V±10%, 50Hz;

Gas pressure: 10kpa~50kpa;

Flue air velocity: under the condition of only igniting the burner and opening the exhaust hood, the flue flow velocity of the box is 0.7m/s, measured by anemometer, and the accuracy is ±0.1m/s;

Flame release time: 0~99 minutes and 99 seconds can be set;

Ignition time: 0~99 minutes and 99 seconds can be set;

Timer accuracy: ≤1s/h;

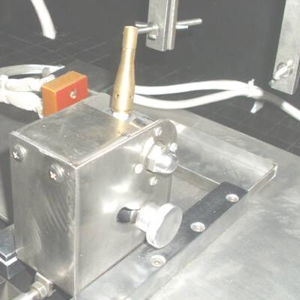

The size of the burner is: the burner is composed of a nozzle with a hole diameter of ¢0.17mm and a regulating valve, and is provided with four air suction holes of ¢4mm;

Burning box inner dimensions: width 700 x depth 400 x height 810mm;

Burning box material: mirror stainless steel, the bottom is a natural vent, the vent is composed of a square box;

Open area: 25x25mm, height: 50mm;

Burner: 45° angle, flame height: 20mm;

Gas: commercial propane, (provided by the customer);

Gas purity: > more than 95%;

Specimen clamp: two U-shaped stainless steel frames, 15mm wide and 5.0mm thick;

Timer: 0~99.99S/M/H settable;

Width 700× depth 400× height 810mm 50kg
