UP-5008 Highly Repeatable No Rotor Rubber Moving Die Rheometer

Introducation:
No rotor moving die rheometer is a core equipment used in the rubber industry to measure the vulcanization characteristics of rubber materials.
It can accurately measure key parameters such as scorch time, vulcanization time, vulcanization rate, and torque changes, providing important basis for formula development and quality control.

Standard:
Testing standardization: GB/T16584, ASTMD5289,ISO 6502

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Working Principle:

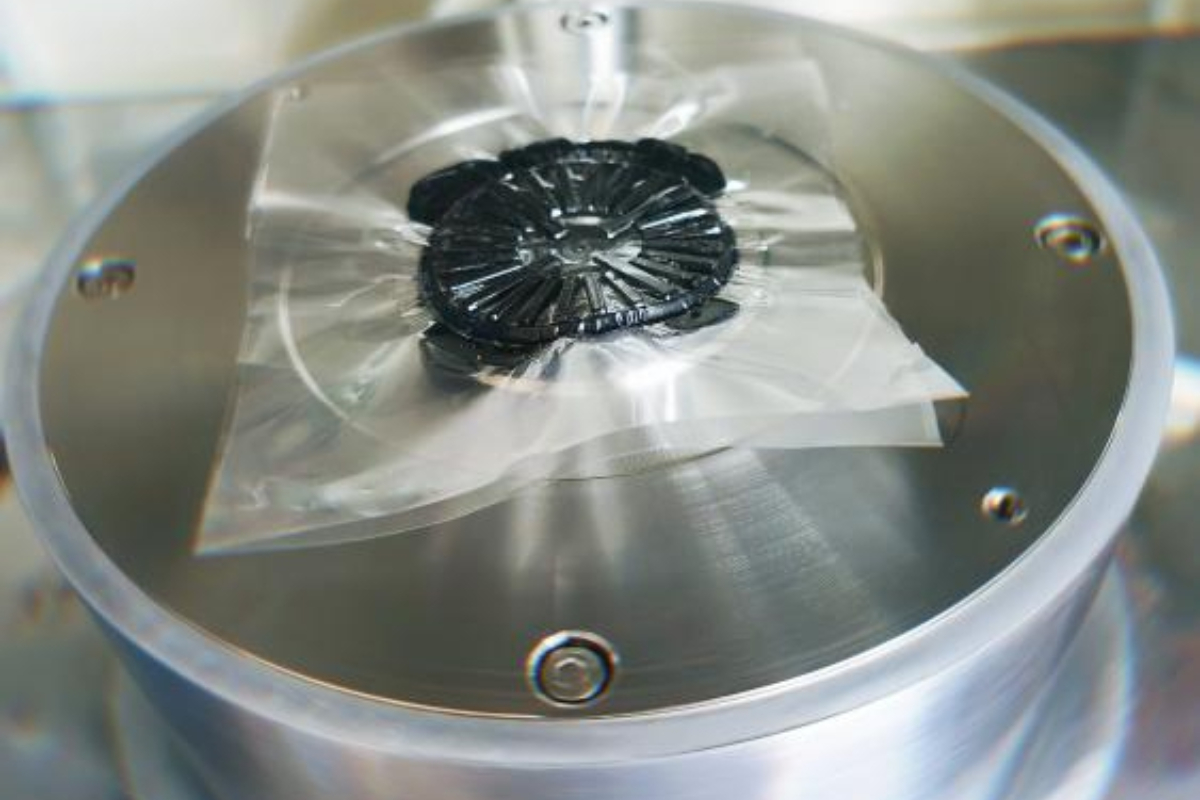

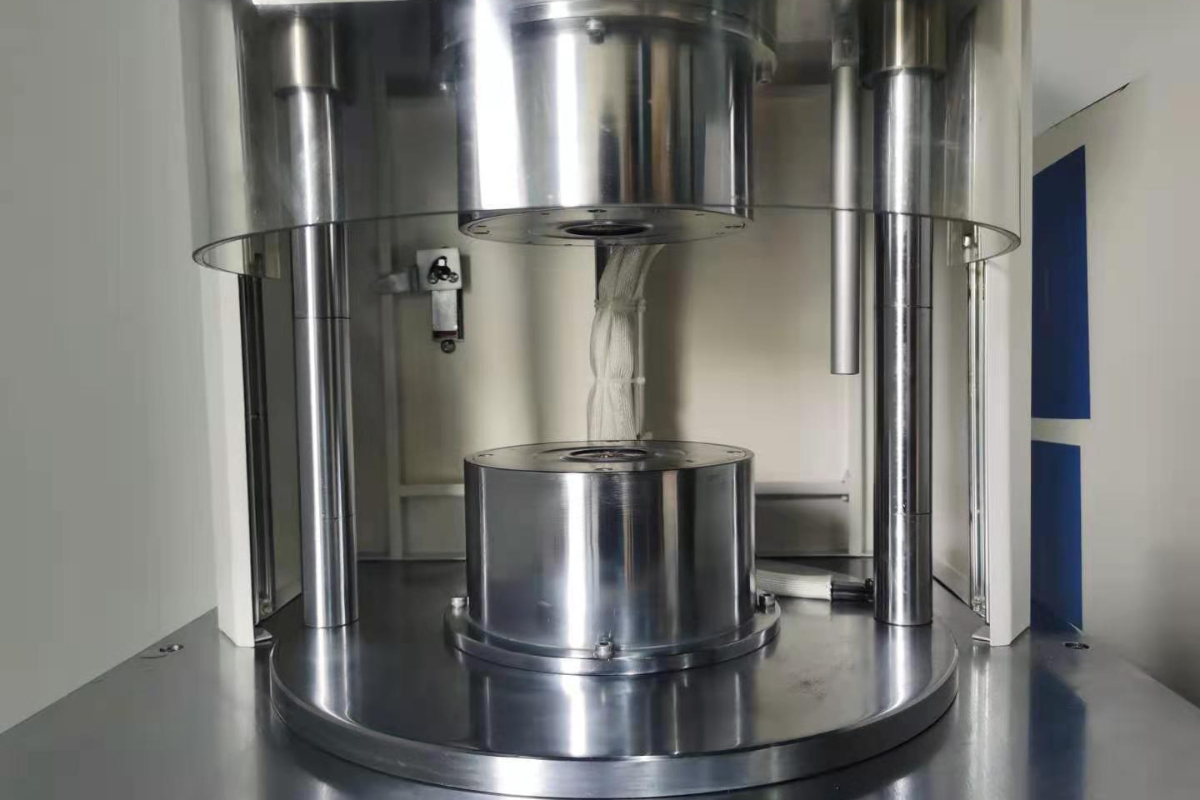

The rubber sample is placed in a nearly completely closed cavity and maintained at the test temperature. The cavity has two upper and lower parts, wherein the lower part reciprocates with a slight linear motion (oscillation), and the sample is sheared by oscillation. The reaction torque (force) of the sample to the cavity is determined, and the magnitude of the torque (force) depends on the shear modulus of the rubber.

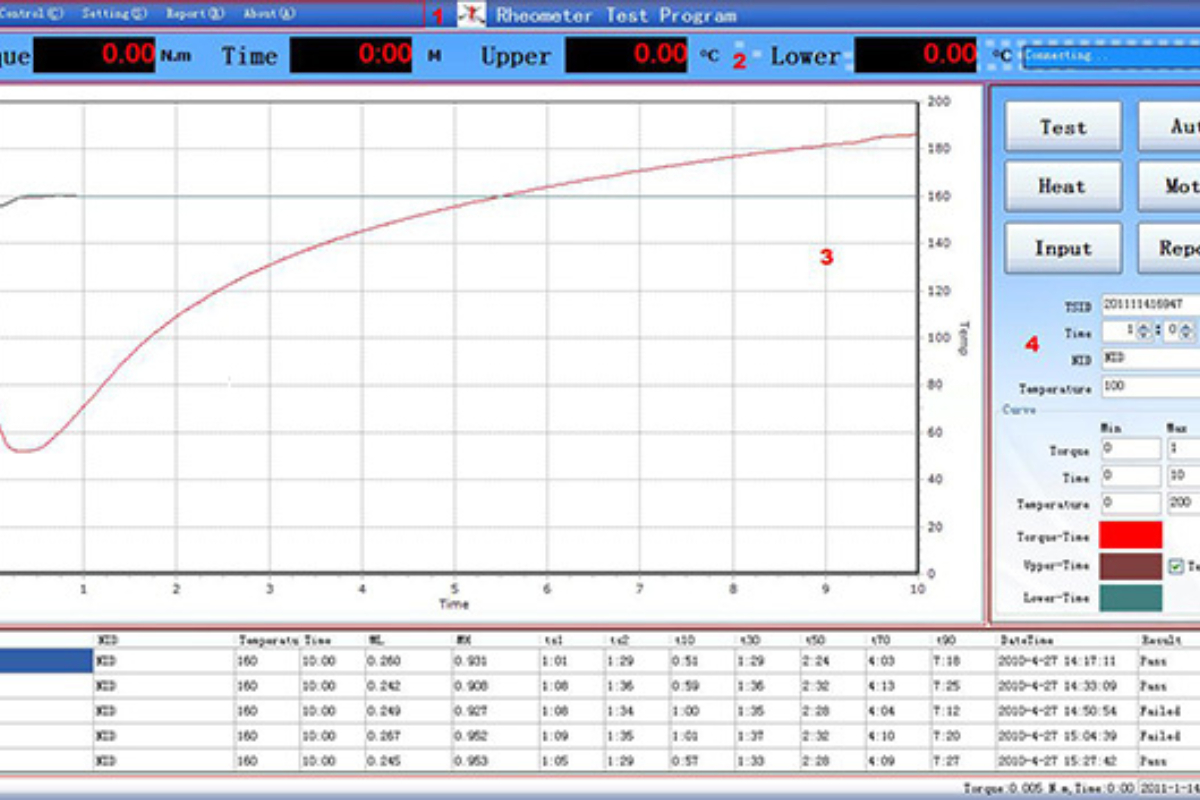

After the start of the vulcanization test, the shear modulus of the sample increases, and the computer displays and records the torque (force) in real time. When the torque (force) rises to a stable value or a maximum value or even returns to the state, a torque is obtained. The relationship between force and time, that is, the vulcanization curve , the shape of the curve is related to the temperature of the test and the characteristics of the compound.

Technical Parameters:

Temperature range	RT~200ºC
Minimum temperature display	0.1ºC
Temperature fluctuation range	±0.15ºC
Heating rate	About 15ºC/min
Torque range	0-20mm
Torque minimum reading	0.001nm
Swing angle	±0.5°/ ±1°/ ±3°(optional)
Swing speed	100r/min(1.66HZ)
Torque accuracy	0.3%
Temperature display resolution	0.01ºC
Temperature recovery time	< 1.5min
Temperature unit	C (degrees Celsius), F (Fahrenheit), K (Kelvin)
Acquisition rate	200time/s
Software language	English, Chinese
Calculation parameters	ts1,ts2,t10,t30,t50,t70,t90,Vc1,Vc2
Software connection	USB2.0
Power	1 phase 220V±15V 50HZ
Torque unit	N.m,N.cm,N.inch,kN.m,kN.cm,kN.inch,kg.m,kg.cm, kg.inch,lp.m,lp.cm,lp.inch,g.m,g.cm,g.inch
Dimensions	Based box: 565851 Main machine:6252128 Computer cabinet:5656130
Printing contents	date, time, temperature, vulcanization curve, temperature curve, ML, MH, ts1, ts2, t10, t50 ,t90, Vc1, Vc2
Air pressure	0.5Mpa--------0.65MPa (User need to prepare an air tube with an outer diameter of 8mm)
