Plastic Rubber Tensile Testing Machine

Product Detail

SERVICE AND FAQ:

Product Tags

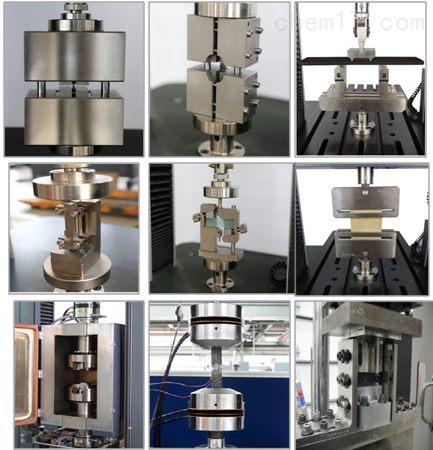

Application:

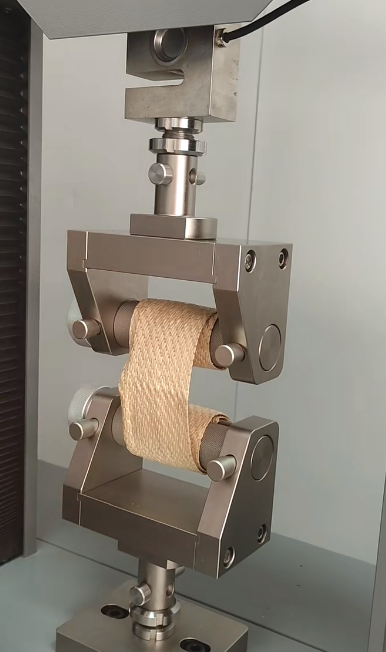

Tape/Adhesive parts peeling test at 90 degree
Metal plate/rod/pipe strength test
Rubber / plastic tensile test
Metal/Plastic bending test
Wire / sheet tensile / compression/tearing/bending test

Scope:

Tape, Automotive, ceramic, composite material, construction, medical/food equipment, metal, plastic, rubber, textile, wood, communication, etc.

Technical Parameter:

Model	UP-2003
Capacity	100N,200N,500N,1KN,2KN,5KN,10KN
Unit switch	N,KN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²
Load resolution	1/500,000
Load accuracy	±0.5%
Load range	Rangless
Max. stroke	650, 1000mm optional
Effective width	400, 500mm optional
Test speed	25~500mm/min
Speed accuracy	±1%
Stroke resolution	0.001mm
Software	standard control software
Motor	AC frequency control motor
Transmission column	high accuracy of ball screw
Main unit dimension WDH	7605301300mm
Main unit weight	165kg
Power	AC220V 5A or specified by user

Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

We provide technical advice and assistance, from initial inquiry to product delivery.
We offer a variety of customized services to fit your specific needs.
We offer installation and set-up services.
We offer training and maintenance services.
We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.

Previous: High-strength Tensile and Elongation Testing Machine

Next: Plastic Rubber Compression Shear Test Machine

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.

peeling tester
