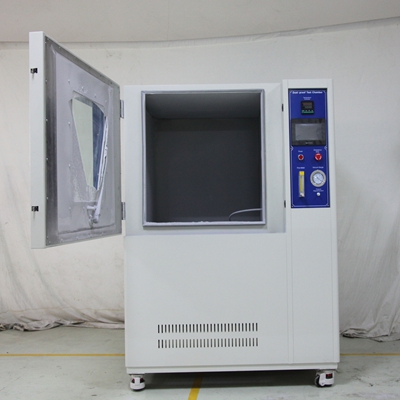

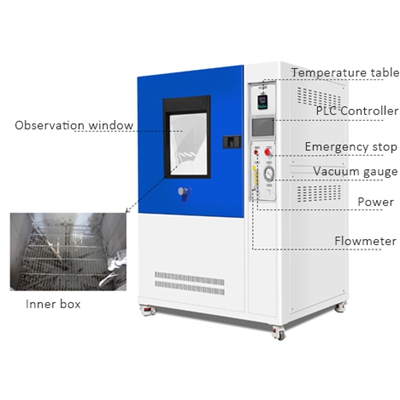

UP-6316 Sand and Dus tproof Test Chamber

Product Description：

The dustproof testing chamber is designed in accordance with GB4706, GB2423, GB7000.1, IEC60529, and ECT standards, and meets the dust testing requirements of IP5 and IP6 levels. The laboratory pressure of the chamber can be kept constant or adjusted to vary, which is suitable for indoor low-concentration dust pollution testing. It is mainly used to evaluate the sealing performance and corrosion degree of the tested samples in such dust environment.

Product Application：

The dustproof testing chamber is mainly applicable to the dustproof performance testing of casings of various products, including but not limited to control cabinets, household appliances, low-voltage electrical appliances, automobiles, lighting fixtures, and motorcycle parts, helping to detect the sealing and corrosion resistance of samples under low-concentration dust environment.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Standards:

IEC60529

IEC 60598

GB2423.37-89

ISO 20653

GB4208

Features:

1. The main controller's LCD touch screen can be used for programmable testing
2. PLC complex human-machine interface control, manual movement time, rest time, and startup time settings.
3. Multiple sets of testing programs can be planned in the interface, and each set can set the required actions arbitrarily,Easy to operate.
4. If a malfunction occurs during operation, various signals will be recorded and displayed for maintenance purposes.
5. Touch settings, numbers are displayed directly, and all conditions are automatically locked by the microcomputer.
6. Imported electronic temperature and humidity sensors do not require cleaning.

Specification:

Temperature range	R.T.+5°C-60°C(adjustable)
Speed of wind testing	≥7.5m/s
metal mesh diameter	50um
Test Chamber size	800×800×800mm
screen stencil diameter	75~100um
Talcum powder dosage	2kg~4kg/m3
Power	1KW, AC 220V
Testing dust	dry powder, silicatecement, flue dust etc
Way of vibration	discontinuous or continuous(adjustable)
Blow the sand dust	discontinuous or continuous(adjustable)
cable hole	φ50mm(circumscribed power accepted)
Time control	continuous 1~9999(S,M,H)
Time control	circle:99~99(S,M,H)(adjustable)
Weight	185kg
