Standards:

This equipment strictly complies with international and domestic mainstream industry test standards:

GB/T 10586-2006: Technical conditions for thermal-humidity test chambers

ISO 16750-4: Road vehicles - Environmental conditions and tests for electrical and electronic equipment

JEDEC JESD22-A101: Steady-state temperature humidity bias life test for electronic components

MIL-STD-810: Environmental engineering test methods for military equipment

ASTM D2126: Standard test method for temperature and humidity response of rigid plastic materials

ICH Q1A: Stability test guidelines for pharmaceutical products

Specification:

Item	Technical Specification
Temperature Range	-40℃ ~ +85℃ (Optional: -70℃ ~ +150℃)
Humidity Range	20%RH ~ 98%RH
Temperature Control Accuracy	±0.1℃
Humidity Control Accuracy	±1%RH
Temperature Uniformity	≤±0.5℃
Humidity Uniformity	≤±3%RH
Temperature Fluctuation	≤±0.3℃
Heating Rate	1.0℃ ~ 3.0℃/min (Adjustable)
Cooling Rate	0.7℃ ~ 1.5℃/min (Adjustable)
Internal Material	Mirror stainless steel (anti-corrosion, easy to clean)
External Material	High-quality cold-rolled steel plate with electrostatic spraying
Control System	7-inch color touch screen programmable controller, multi-segment program storage
Air Circulation System	High-speed centrifugal fan, balanced temperature and humidity air supply
Safety Protection	Over-temperature protection, over-current protection, water shortage alarm, leakage protection
Working Volume (Optional)	80L / 150L / 225L / 408L / 800L / 1000L

Application:

Widely applicable for environmental reliability testing and aging verification of various products and materials, covering multiple core industries:electronics & semiconductor,automotive Industry,pharmaceutical industry,new energy industry,materials & chemical Industry and home appliances & packaging.

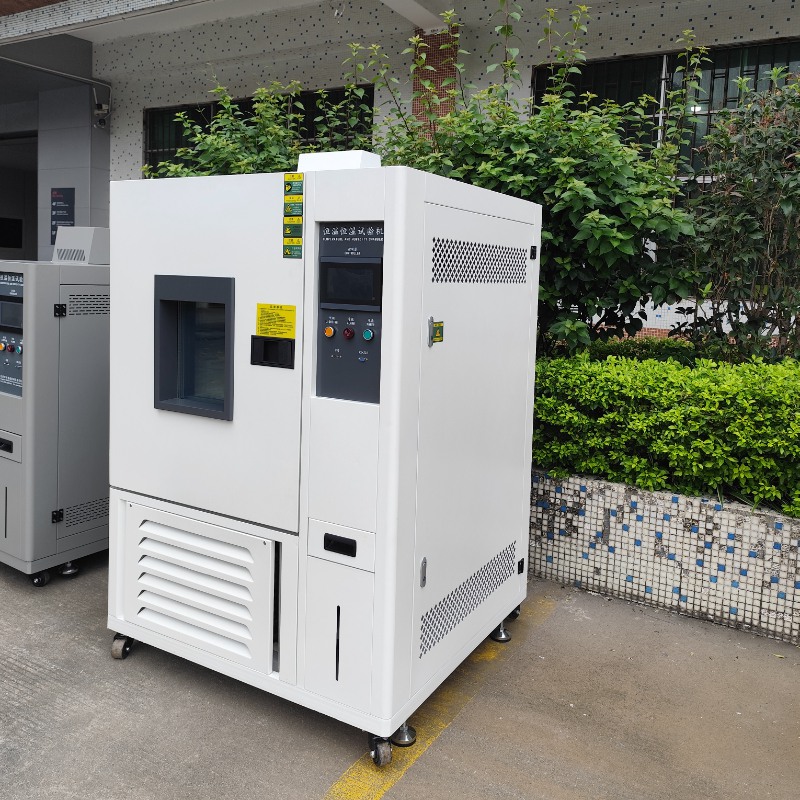

UP-6195 temperature and humidity test chamber (2)

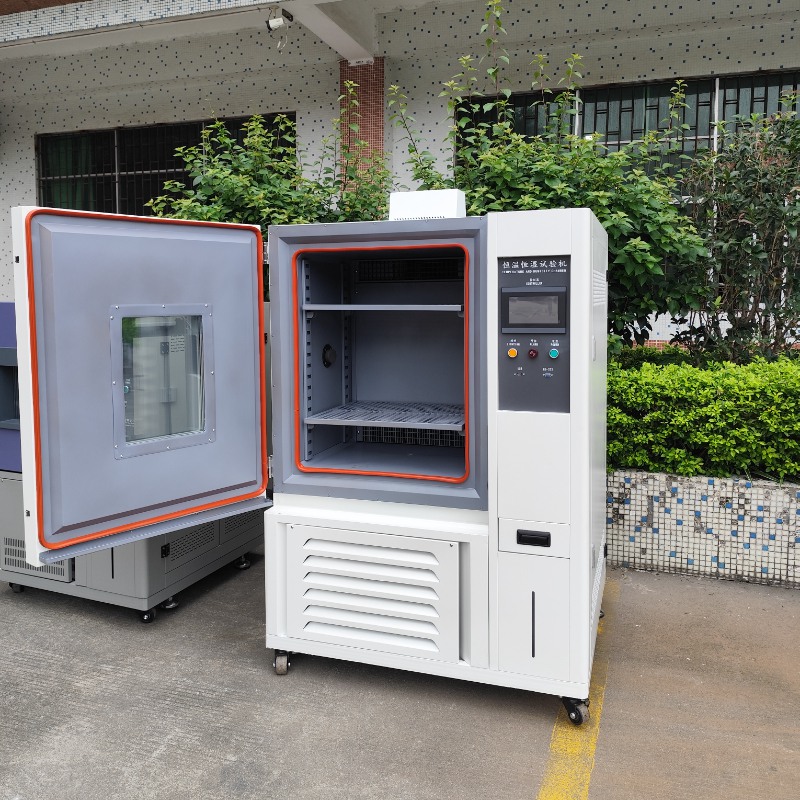

UP-6195 temperature and humidity test chamber (3)

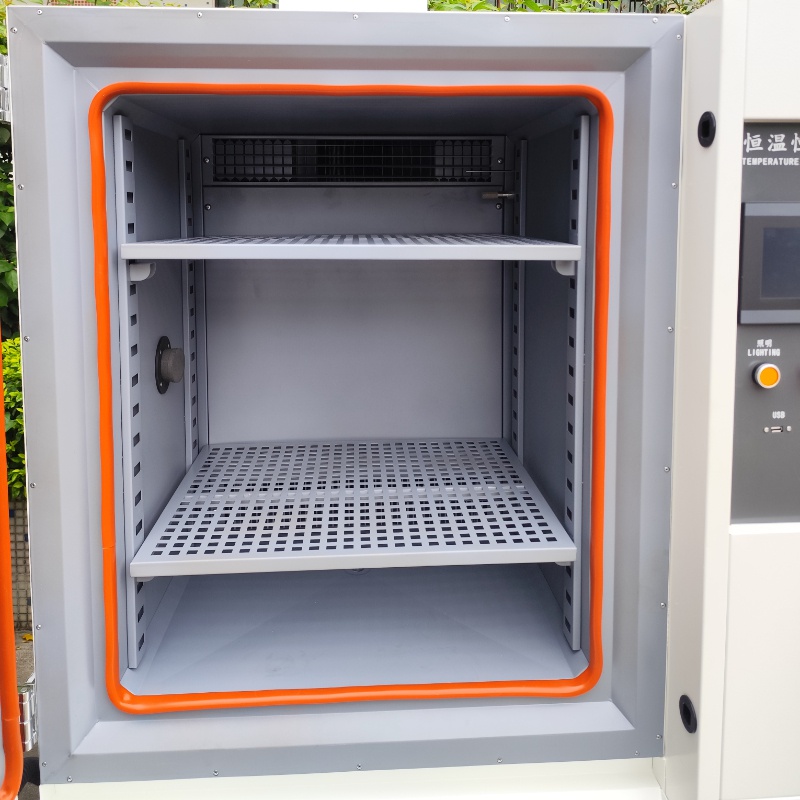

UP-6195 temperature and humidity test chamber (1)

Previous: UP-6195 85ºC 85%RH Programmable Temperature Humidity Test Chamber for Material Aging Test

Next:

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
