UP-6119 Heat Treatment High-temperature Oven

The system is an integral high-temperature muffle furnace, which integrates the furnace body and the control part, greatly reducing the space occupied.It is mainly used in metallurgy, glass and ceramics

Refractory materials, crystals, electronic components, furnace manufacturing and small steel parts of the return, tempering and other high temperature heat treatment fields;It is also the ideal equipment for high temperature sintering.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Purpose Overview:

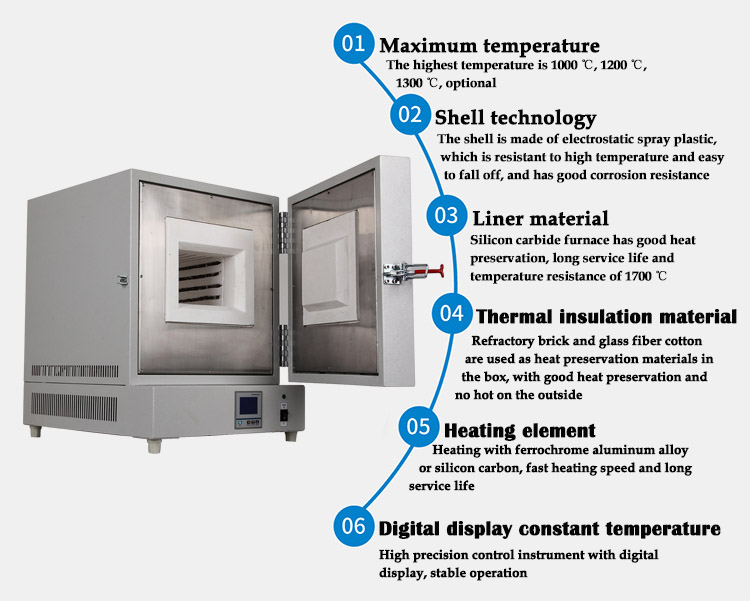

Product features:

• Large screen LCD, whole machine integrated design, unique door furnace design, make the door operation more safe and convenient.

• The casing is made of high quality cold-rolled steel plate, and the casing seven colors is baked by high temperature, which makes it more durable.

Microcomputer PID temperature controller, accurate and reliable temperature control.

• Light weight and easy to move.

• Faster heating speed and more efficient use.

More reasonable appearance design, uniform temperature, more convenient use.

• With over current, over voltage, over heat, leakage, short circuit and other safety protection measures to ensure safer use.

• Good heat insulation effect, box wall and furnace with double - layer structure design, and ceramic fiber board as heat insulation material.

Specification:

Power	AC220V 50HZ		AC380V 50HZ		AC220V 50HZ		AC380V 50HZ
Max temperature	1000ºC				1200ºC
Use temperature	RT+50~950ºC				RT+50~1100ºC
Furnace material	ceramic fiber
Heat methods	Nickel chromium wire (molybdenum-containing)
Display mode	liquid crystal display
Temperature control mode	Programmed PID control
Input power	2.5KW	4KW	8KW	12KW	2.5KW	4KW	8KW	12KW
Work romm size W×D×H(mm)	120×200×80	200×300×120	250×400×160	300×500×200	120×200×80	200×300×120	250×400×160	300×500×200

Effective volume	2L	7L	16L	30L	2L	7L	16L	30L
* Under no load, no strong magnetism and no vibration, the test performance parameters are as follows: ambient temperature 20ºC, ambient humidity 50%RH.The type with "A" in the back is ceramic fiber furnace.

Previous: UP-6195 Constant Temperature Humidity Test Chamber

Next: UP-6119 High Temperature Muffle Furnace

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
