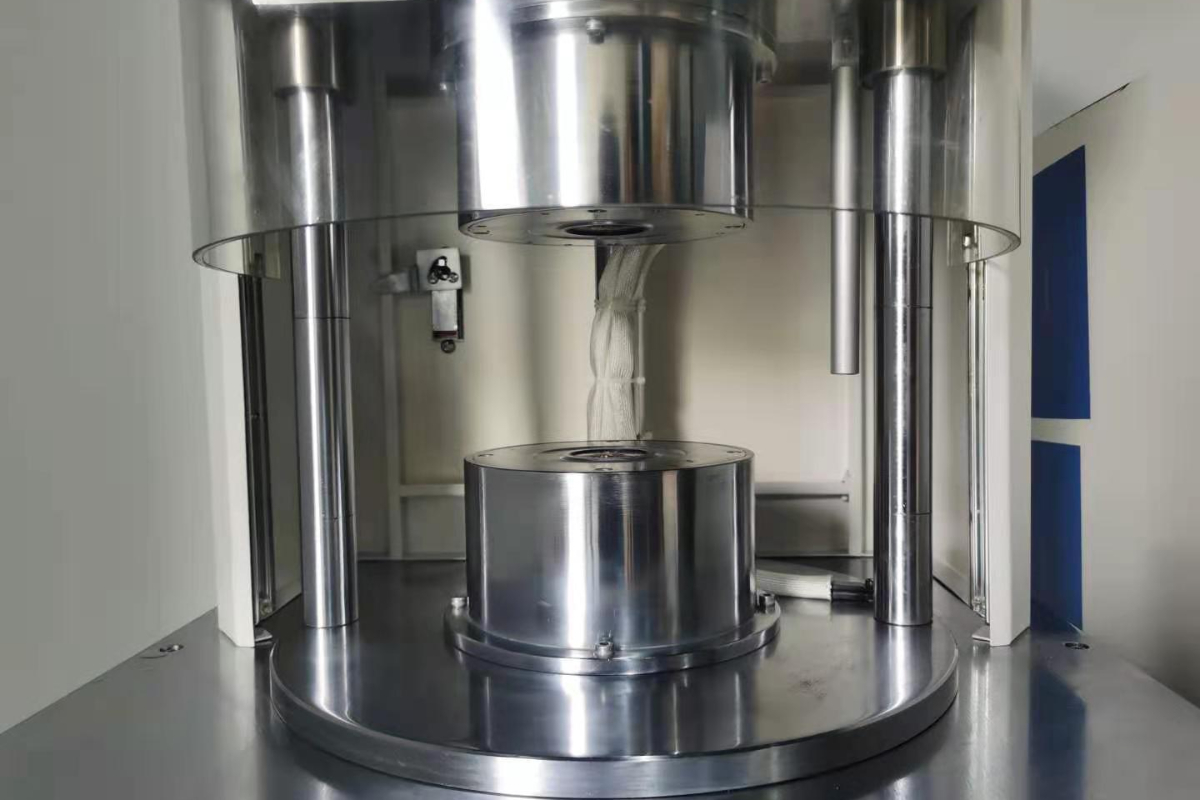

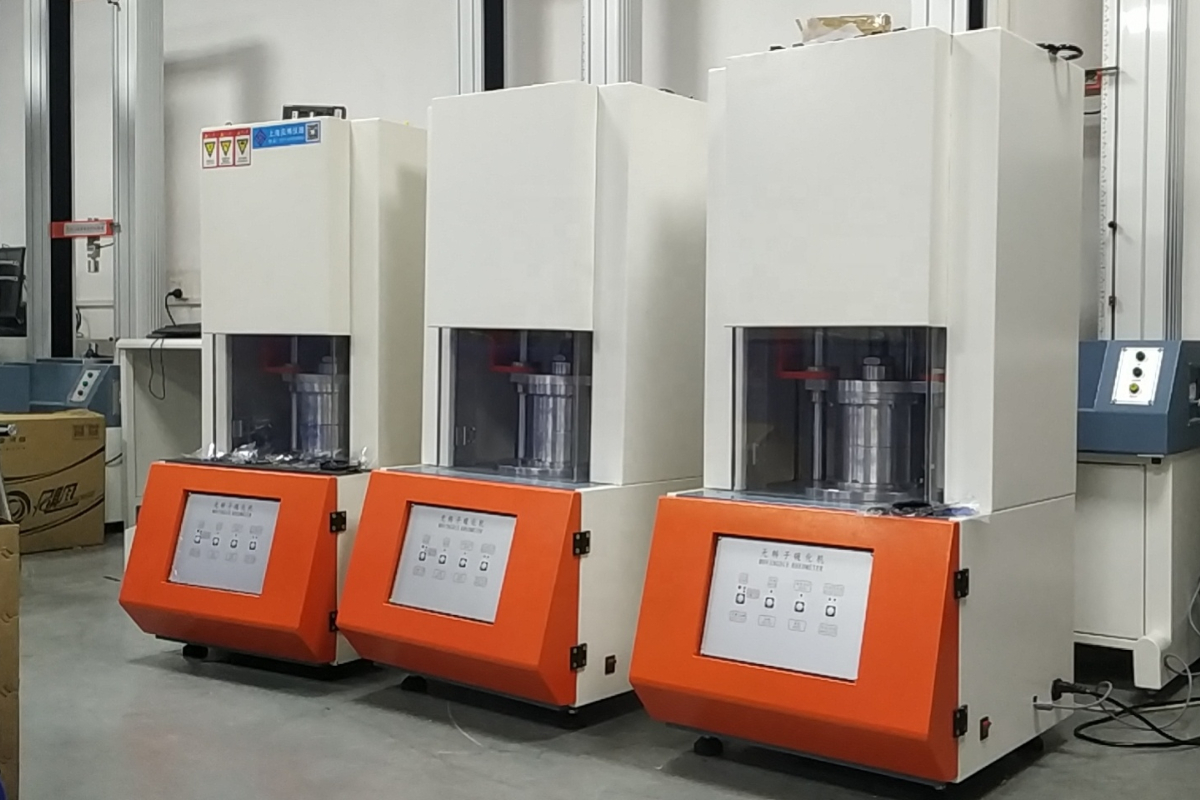

UP-5008 Rotorless Rheometer

Product Introducation:

Rotorless rheometer is a high-precision professional testing instrument designed for vulcanization performance and viscoelastic property analysis of rubber and polymer materials.

Equipped with a high-sensitivity torque detection system and precise constant-temperature control module, the equipment can accurately capture the whole vulcanization process of materials, including scorch time, optimal curing time, vulcanization rate and torque changes.

It supports multi-unit switching, high-speed data acquisition and multi-language operation.

Standards:

GB/T16584, ASTMD5289 , ISO 6502

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Technical Parameters:

Parameter Name	Specification
Torque Resolution	1/50000
Torque Precision	0.3%
Torque Unit	N.m, N.inch, kg.m, kg.cm, kg.inch, Lb.m, Lb.inch
Temperature Control Range	60℃ — 300℃
Temperature Fluctuation Range	±0.15℃
Temperature Resolution	0.01℃
Temperature Recovery Time After Clamping	< 1min
Temperature Unit	°C, °F
Acquisition Rate	200 SPS
Supported Language	English, Simplified Chinese, Traditional Chinese
Applicable Standards	GB/T 16584, ASTM D5289, ISO 6502
Counting Parameters	ts1, ts2, t10, t30, t50, t70, t90, Vc1, Vc2
Software Interface	USB2.0

Application:

This rotorless rheometer is widely applicable for quality inspection and performance research in rubber and polymer industries,

Rubber Product Manufacturing: Testing vulcanization performance of tires, hoses, seals, rubber tubes, rubber sheets and daily rubber products

Polymer Material Research: Viscoelastic analysis and curing characteristic test of various synthetic rubber, thermoplastic elastomers and modified polymer materials.

Industrial Quality Inspection: Factory incoming material inspection, production process quality control and finished product performance certification testing for rubber raw materials.

Scientific Research & Teaching: Laboratory material performance research, formula development and experimental teaching in universities and research institutes.

New Material Development: Performance comparison and process parameter debugging for new rubber composite materials and modified rubber products.
