UP-4002 Leather Flexing Tester

Product Introduction:

Leather flexing tester simulates repeated bending deformation of shoe uppers during walking, to test anti-cracking, flex fatigue performance of leather, artificial leather, coated fabrics and luggage surface materials under dry or wet testing conditions. It bends specimens at fixed 22.5° angle with constant cycling speed, auto records bending cycles, inspects crack & peeling after preset cycles for raw material QC, R&D and third-party laboratories.

Application :

Footwear factory: Shoe upper leather, safety shoe leather, PU synthetic leather

Luggage & bag industry: Leather cover, coated textile materials

Leather processing factory: Finished leather surface coating flex resistance

Third-party testing labs, university material laboratories

Standards:

ISO 5402-1, SATRA TM55, EN ISO 20344, ASTM D6182, JIS K6545, BS 3144, DIN 53351, GB/T 20991

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Features:

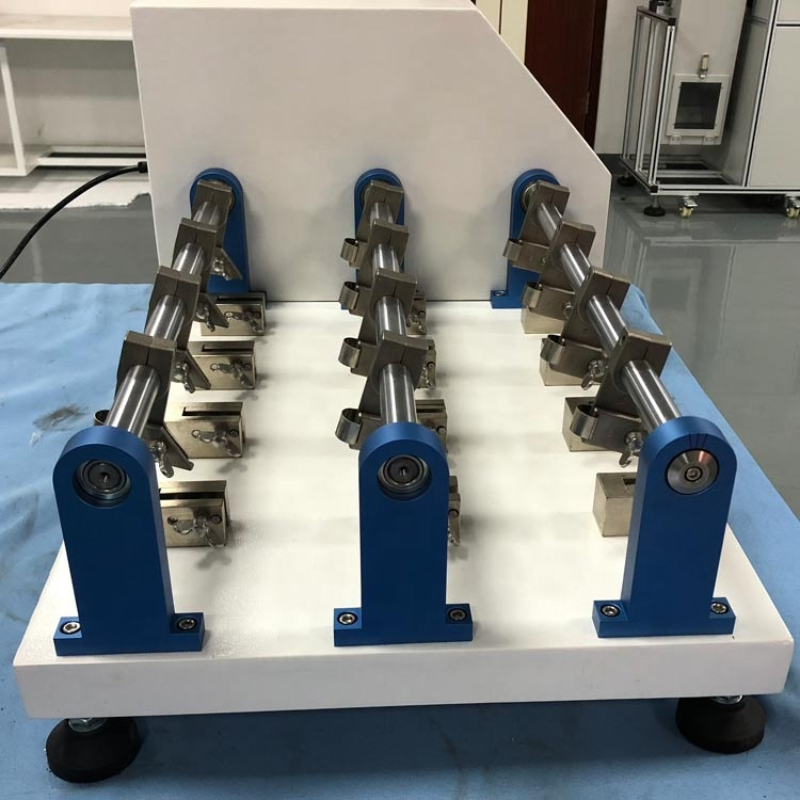

Multi-station Optional: 6 or 12 testing fixtures for simultaneous multi-sample test, high lab efficiency

Stable Driving System: Standard 100±5 cycles per minute, low-noise servo motor, stable operation

Precise Control: LCD digital counter (0–999999 cycles), auto stop when reaching set value, Chinese & English dual language panel

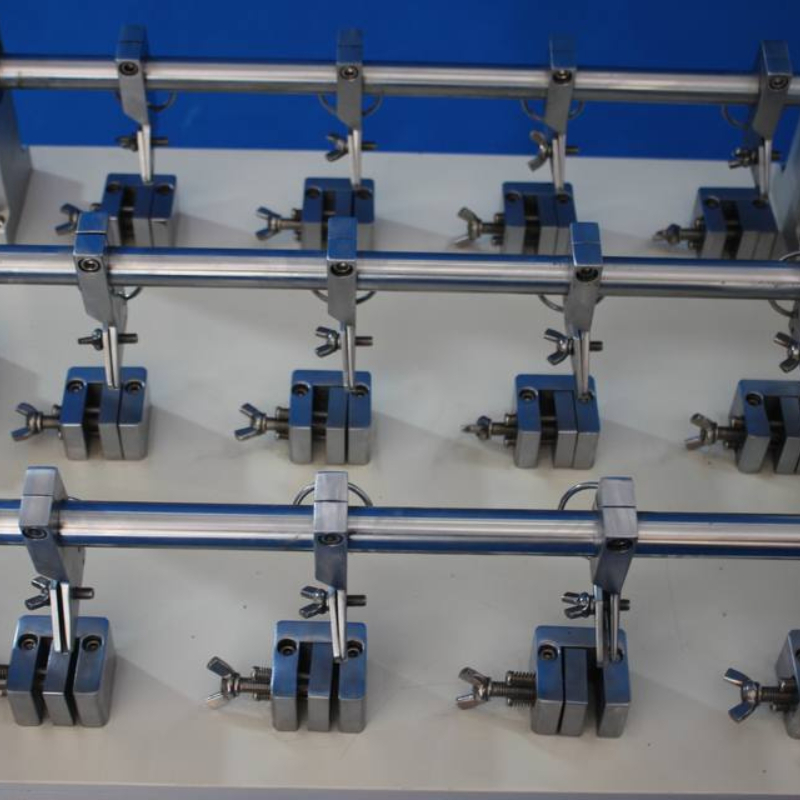

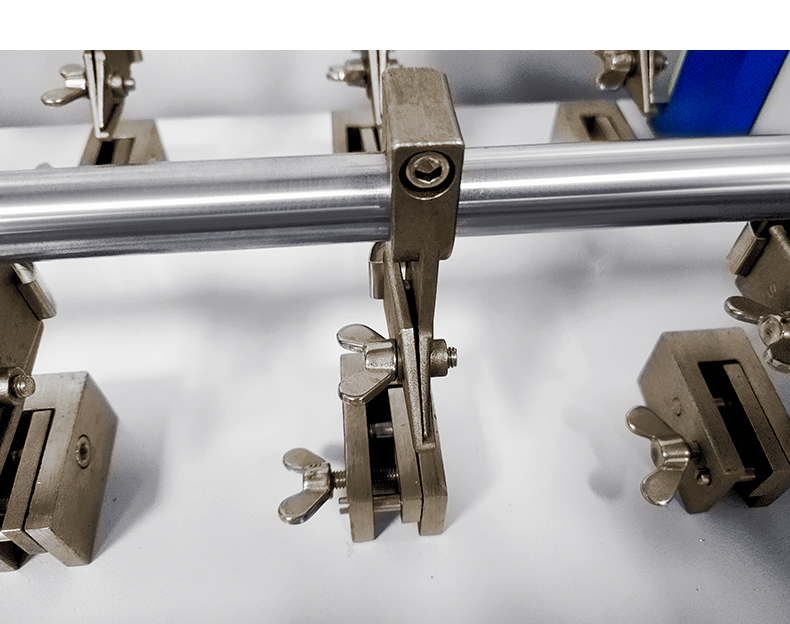

Durable Structure: Main frame with baking paint, all clamping jigs made of stainless steel, easy specimen loading/unloading

Standardized Design: Match ISO, SATRA, ASTM, EN test requirements, support dry & water-soaked wet flex test

Export Standard: Complete export plywood package, CE certified, 12–18 months warranty

Specification:

Item	Specification
Test Stations	6 stations / 12 stations (customizable)
Bending Angle	22.5° fixed standard angle
Cycling Speed	100±5 cycles per minute
Specimen Size	70×45mm standard sample
Counter Range	0 ~ 999,999 cycles auto-stop
Power Supply	AC220V 50/60Hz, single phase
Overall Dimension	640×510×245mm
Net Weight	45kg
Certification	CE Certification
