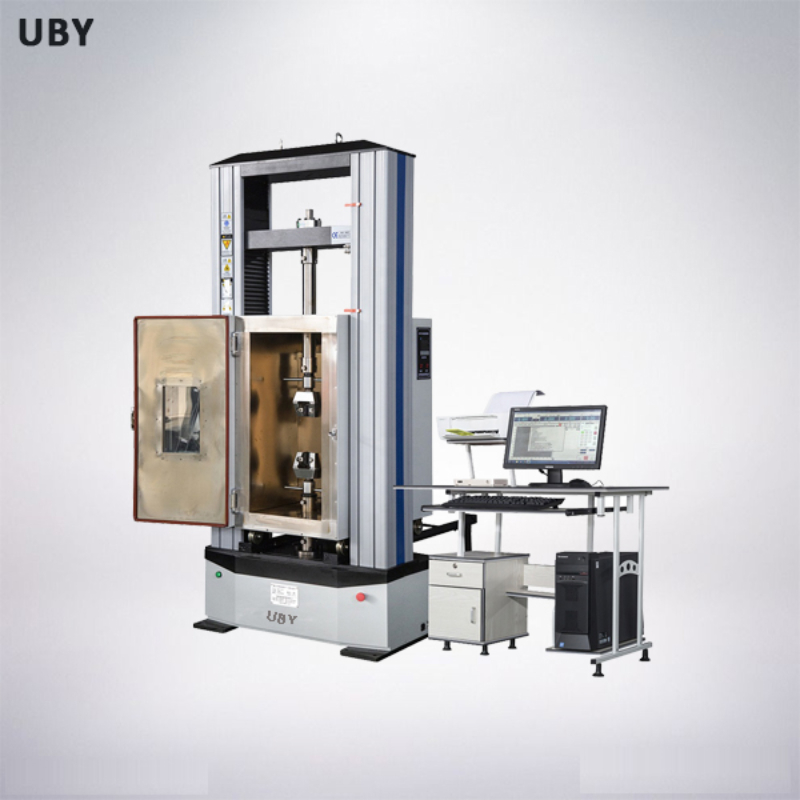

UP-2004 High and Low Temperature Tensile Tester

Product Description:

This machine combines high-low temperature tester with peel strength tester wonderfully.

It can restrain the error brought by changing environment between testing process.

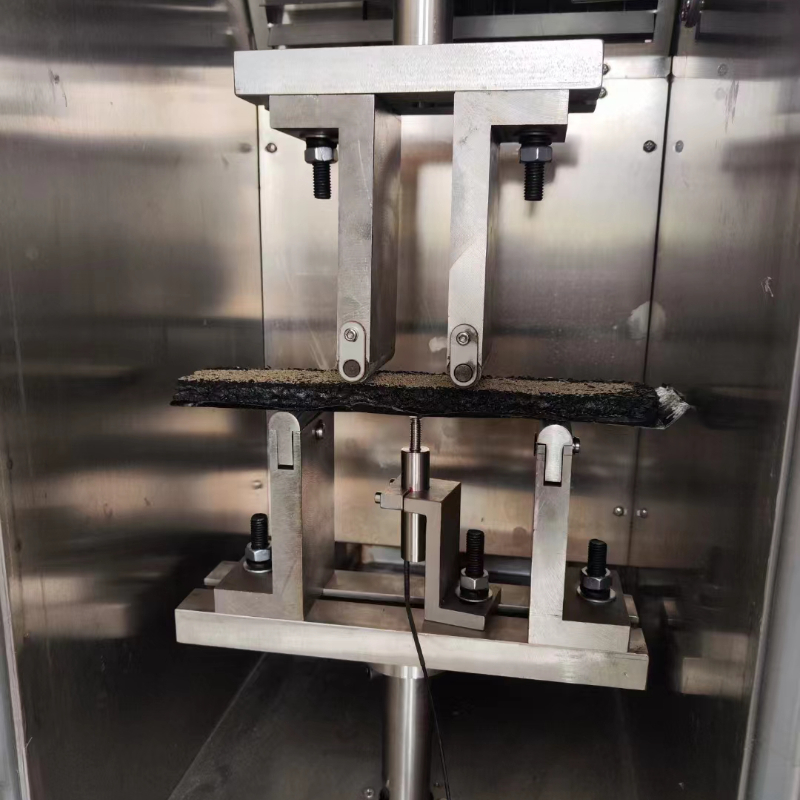

Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment.

This machine can be changed into programmable temperature&humidity tester according to your needs.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Character:

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficiency and structure rigidity.

2. Use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controlled in 2%.

3. That Using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

4. Have steady performance, high accuracy, powerful software function and easy operation.

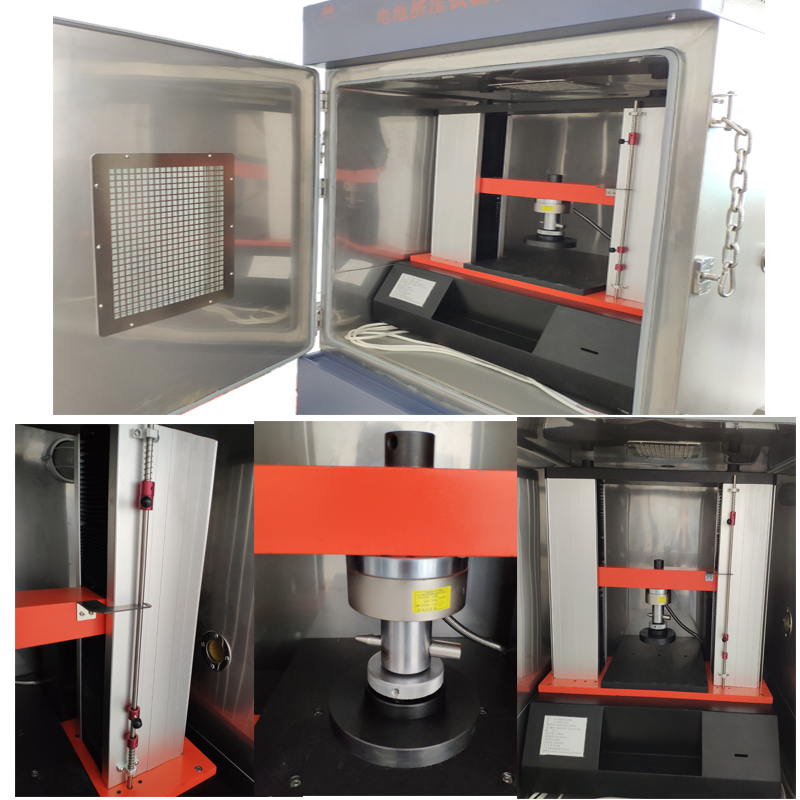

5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.

Design Standards:

UN38.3, SJ/T11169-1998, SJ/T11170-1998, UL1642-1995, UL2054-1997, QC/T 743-2006 , QC/ 742-2006, QC/T 744-2006 , GB/T18287-2000, GB 8897.4-2002 , IEC60086-4-2000 and so on.

Specifications:

Capacity	2,5,10,20,50,100,200,500,1000kg
Choosing capacity	3 to 10 times of the most value about the specimen damage g,kg,N,KN,LB( switchover free)
Operation method	Windows operation
Resolution	1/2500,000
Accuracy	≤0.5%
Testing speed	1~500mm/min
Stroke	400,500,600mm(Height can be customed)
Test width	40cm(can be changed by customer needs)
Test space	(L×W×H)40×40×70cm
Motor	Panasonic servo motor
Kind of drive	high-precision ball screw
Dimension	(W×D×H)1200×600×1500mm
Weight	200kg
Power	1φ,110V/50Hz
Rate of work	0.4KW(depend on motor model)
Clamp	customize by customer needs(tensile and compressive clamp)

Temperature control system:

Temperature range	-40ºC~150ºC
Temperature method	computer P.I.D.automatic control
Humidity range	20%RH~98%RH
Stability of control	±2.5%RH,±1ºC
Accuracy of distribution	±3%RH,±1ºC
Circulatory System	Wind forced circulation
Heating System	SUS#304, stainless steel heater
Humidifying System	Surface evaporation, a transparent structure
Cooling system	Fan cooling mode, high efficiency of all sealed compressor
Dehumidifying System	Freezing latent heat humidification mode
Internal&external material	SUS#304
Inner dimension:	(L×W×H)40×40×70cm

Safety Device:

Stroke protection

Machinery, computer double protection, prevent over preset

Force protection

system setting

Emergency stop device

Handling emergenciesLeakage current

Compressor overload

Over temperature
