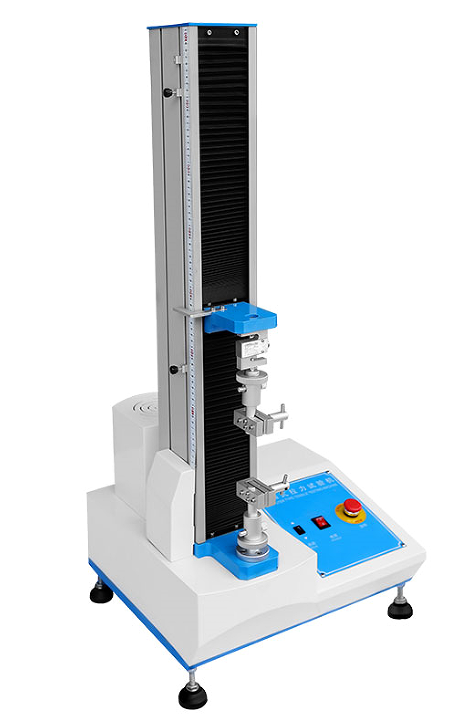

UP-2000 Pull Force Tensile Tester

Pull Force Tensile Tester is an instrument used to measure the strength and performance of materials, components, or connections when subjected to an axial pulling force.

By applying a continuously increasing tensile load until the specimen breaks or reaches a specific point, it accurately determines key mechanical properties such as maximum pull force, tensile strength, and elongation.

This equipment is widely used in quality assurance, research and development, and failure analysis.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Use

These series of Tensile testing equipment is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.

Design standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Specifications

Model	UP-2000
Range of speed	0.1~500mm/min
Motor	Panasonic sevor motor
Resolution	1/250,000
Capacity choice	1,2,5,10,20,50,100,200,500kg optional
Stroke	650mm(excluding clamp)
Accuracy	±0.5%
Force relative error	±0.5%
Displacement relative error	±0.5%
Test speed relative error	±0.5%
Effective testing space	120mmMAX
Accessories	computer, printer, system operation manual
Optional accessories	stretcher, air clamp
Operation method	Windows operation
Weight	70kg
Dimention	(W×D×H)58×58×125cm

Safety Device

Stroke protection	Upper and lower protection, prevent over preset
Force protection	system setting
Emergency stop device	Handling emergencies

Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and british system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function;
10. Have test data arithmetic analysis function;
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics.

Previous: UP-2000 Tensile Strength Testing Machine

Next: UP-2003 Peel Adhesion Tester

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
