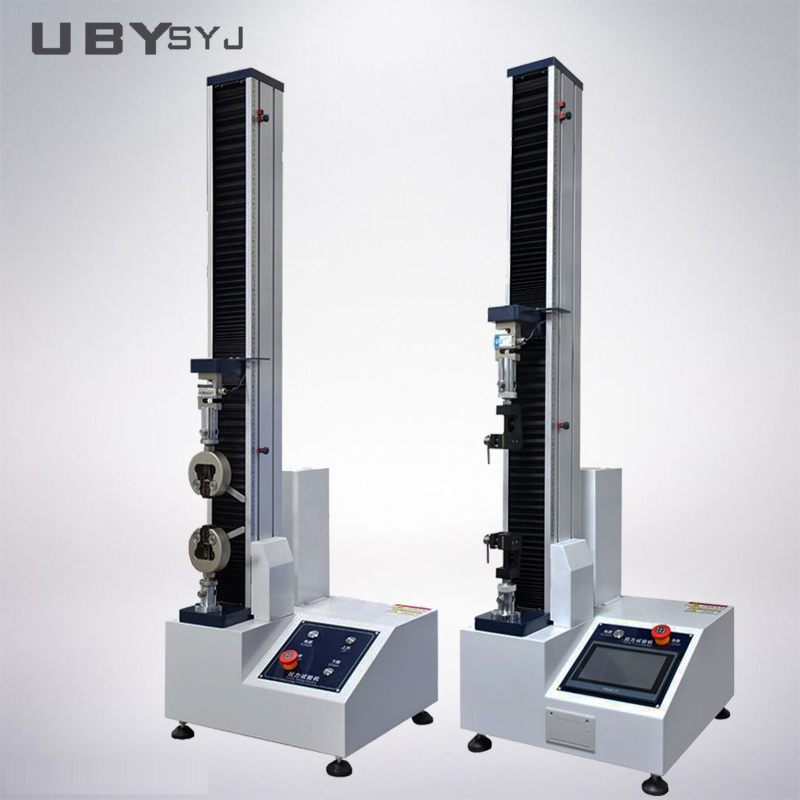

UP-2000 90° Peel Strength Tester For Various Tapes Properties Testing
Specifications:
| Model | UP-2000 |
| Sensor Capacity | 2,5,10,20,50,100kgf any one option |
| Measurement and Control Software | Windows Professional Sofeware |
| Measurement Accuracy | ±0.5% |
| Force Resolution | 1/500,000 |
| Effective Range of Measurement | 0.5~100%F.S |
| Deformation Display Accuracy | ±0.5% |
| Test Speed | 0.1~1000mm/min,free set |
| Max Test Stroke | Max 650mm(Extended 1000mm,customized),not includes gripper |
| Effective Test Space | Dia 120mm |
| Unit Switch | A variety of measurement units including international units |
| Stop Method | Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Special Function | The holding, holding and fatigue testing can be done |
| Standard Configuration | 180° peel fixture 1 set , 3 pieces peel steel plates (50*150mm),PT-6020 manual rolling wheel 1 piece, software and RS232 data line 1 sets, 1 sets of equipment power supply, CD 1 CD-ROM operating instructions, 1 copies of product warranty card |
| Separately Purchase Configuration | 90° peel fixture ,loop tack fixture, business computer , color printer , kinds of test fixtures |
| Machine Size | About 57×47×120cm(W×D×H) |
| Machine Weight | About 70kg |
| Motor | AC Servo Motor |
| Control Method | Double Display Double Control(Touch Screen) |
| Electric Power | 1PH,AC220V,50Hz,10A or specified |
Our service:
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.
4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
