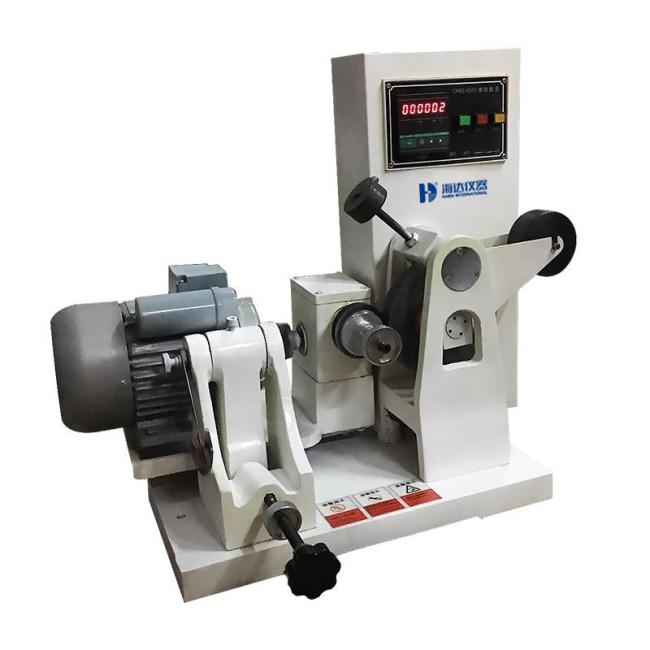

UP-1008 Akron Abrasion Tester

Rubber Akron Abrasion Tester is used to determine the wear resistance of vulcanized rubber, through the sample and the grinding wheel in the tilt Angle and load friction, the sample within the mileage of the wear volume.

Digital setting, display the number of wear, automatic stop, the host and electrical control design as one, the use of calibrated grinding wheel, beautiful shape, easy to operate, for the improved testing machine.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Product Description

It consists of a test chamber, a runner, a sample holder and a control panel. When conducting the test, the rubber sample is placed on the stand, and the test conditions such as load and speed are set on the control panel. The specimen holder is then rotated against the grinding wheel for a specified period of time. At the end of the test, the degree of wear is calculated by measuring the weight loss of the specimen or the depth of the wear track. Test results obtained from the Rubber Abrasion Resistance Akron Abrasion Tester are used to determine the abrasion resistance of rubber articles such as tires, conveyor belts, and shoe soles.

Applicable industries: rubber industry, shoe industry.

Determination of standard: GB/T1689-1998vulcanized rubber wear resistance machine(Akron)

Testing Condition

ltem	Method A	Method B
Test temperature	75±2"C	75+2°℃
Speed of spindle	1200+60 r/min	1200+60 r/min
Testing time	60±1min	60±1min
Axial testing force	147N(15kgf)	392N(40kgf)
Axial testing force zero point inductance	±1.96N(±0.2kgf)	±1.96N(o.2kgf)
Standard steel-ball specimen	12.7mm	12.7mm

Technical Parameters

Name	rubber wear resistance akron abrasion testing machine
Grinding wheel size	Diameter of 150mm, the thickness of 25m, center hole diameter of 32mm; particle size of 36,abrasive alumina
Sand wheel	D150mm,W25mm, particle size 36 # combine
Specimen size Note: D for rubber tire diameter, h is the thickness of the sample	Strip [length (D+2 h)of+0~5mm,12.7±0.2mm; thickness of 3.2mm,±0.2mm] Rubber Wheel diameter 68 °-1mm, thickness of 12.7±0.2mm, hardness of 75 to 80 degrees
Specimen tilt angle range	" to 35 ° adjustable
Weight weight	Each of 2lb,6Lb
Transfer speed	BS250±5r/min;GB76±2r/min
Counter	6-digit
Motor specifications	1/4HP[O.18KW)
Size of the machine	65cmx50cmx40cm
The weight of the machine	6Okg
Balance hammer	2.5Kg

Power Supply	single phase AC 220V 3A
