TEMI430 temperature and humidity controller

4.3 -inch touch screen, TFT resolution: 480 × 272, the product display is clear and intuitive and three -dimensional, the programming control system is flexible and convenient, the performance is stable, and the work is more efficient.


Product Detail

SERVICE AND FAQ:

Product Tags

Introduction:

4.3 -inch touch screen, TFT resolution: 480 × 272, the product display is clear and intuitive and three -dimensional, the programming control system is flexible and convenient, the performance is stable, and the work is more efficient.

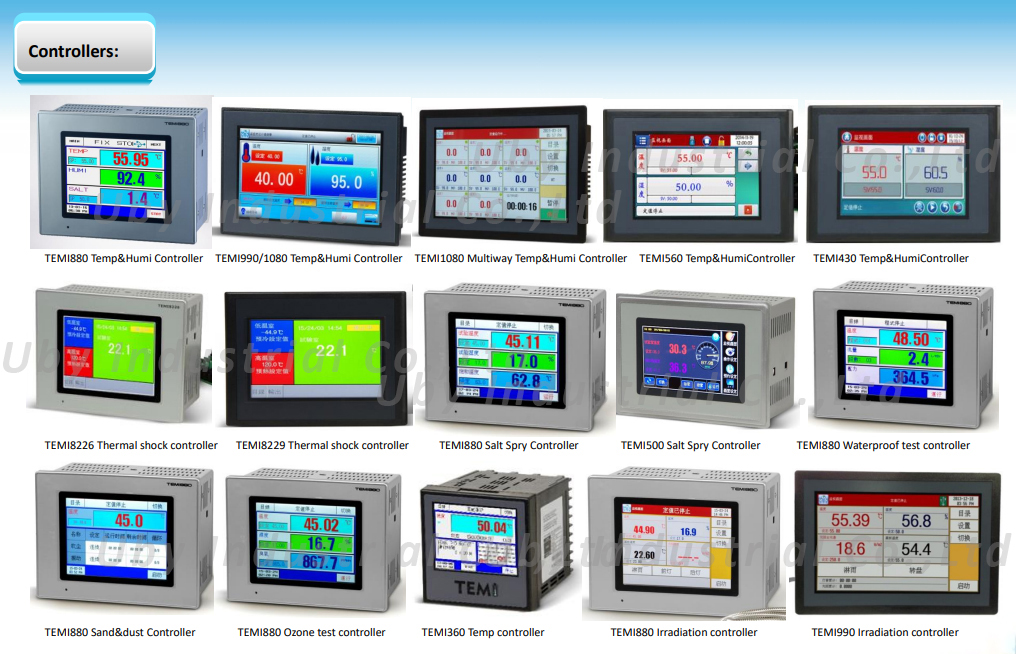

controller水印

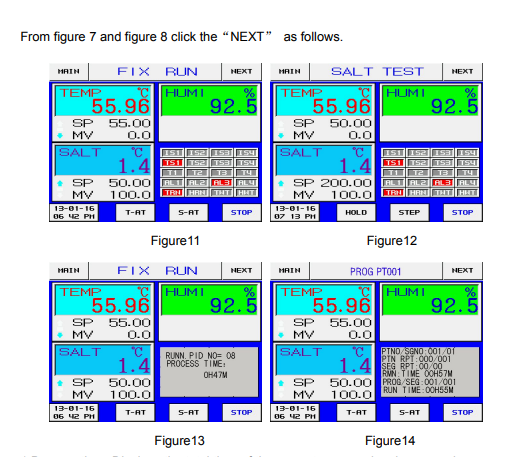

QQ图片20211210151704

Technical indicators:

1. 4.3 -inch touch screen, TFT resolution: 480 × 272;
2. Sensor type: thermal resistance PT100, thermocouple;
3. Temperature measurement range: -90.0 ºC ~ 200.0 ºC error ± 0.2 ºC;
4. Relative humidity measurement range: 1% to 100% error ± 1%;
5. Communication interface: RS232 /RS485, USB.
6.Dimensions: 147 × 103 × 38 (mm) (L × W × D)
7.Installed opening size: 136 × 92 (mm) (L × W)

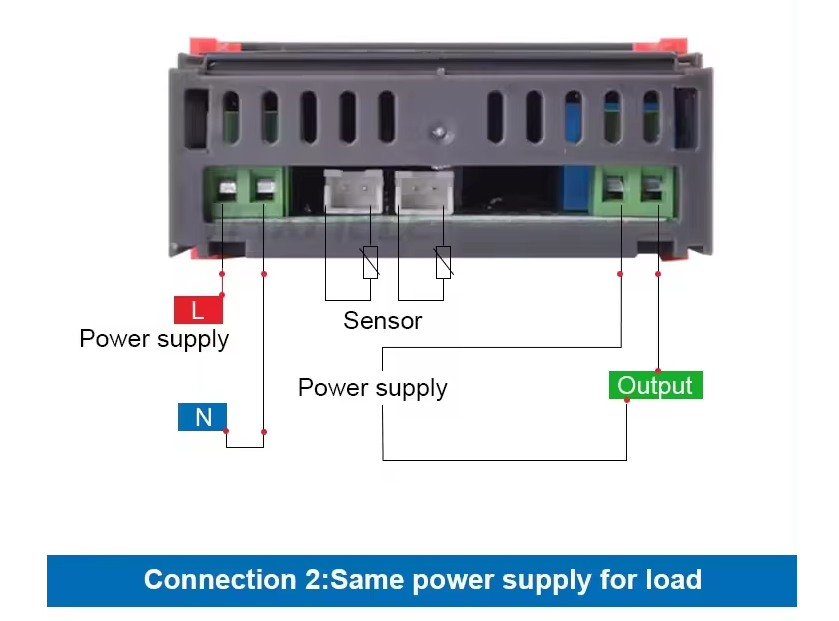

为负载提供相同的电源

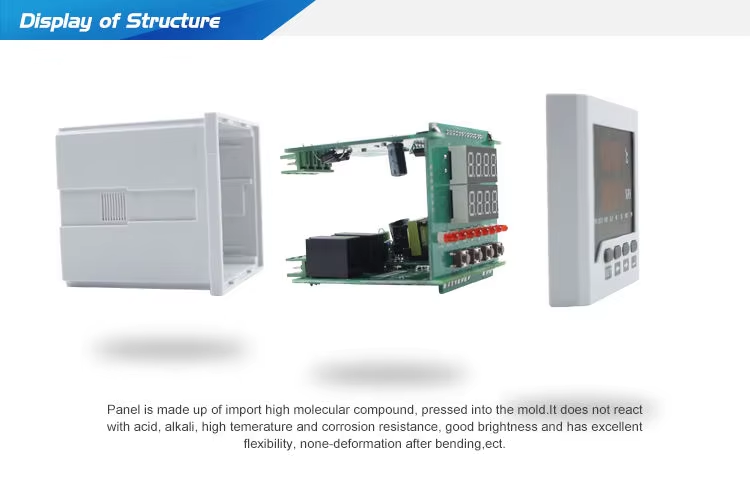

微信图片_20250401141456
