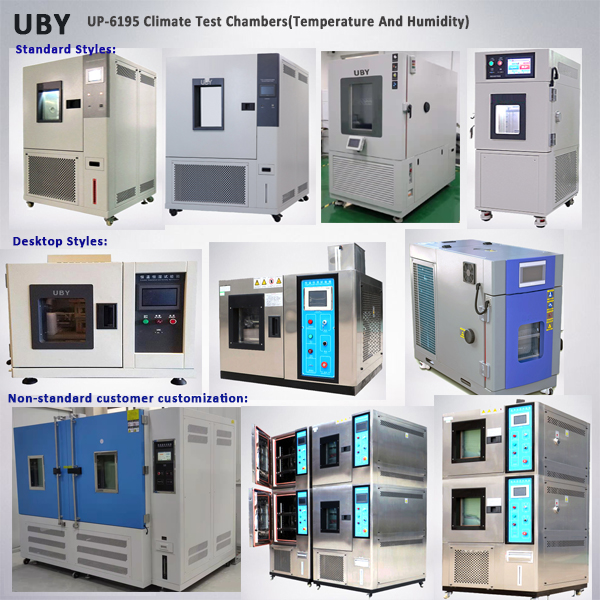

This FAQ introduces the core performance, structural advantages, technical parameters and application scenarios of the UP-6195 constant temperature and humidity test box, helping global customers quickly understand the equipment’s reliability, functionality and industrial adaptability.
1. What test functions can the UP-6195 constant temperature and humidity test box realize?
The device accurately simulates diverse temperature and humidity environments, supporting constant temperature, heating, cooling, humidification and drying cycle tests. Equipped with a silicone sealed cable port, it can test running samples and effectively detect product environmental adaptability defects.
2. What are the core design advantages of the UP-6195 test chamber?
It features ultra-quiet operation at 68dBA and a space-saving wall-mounted structure. Adopting a full thermal bridge break door frame design and a 50mm sealed cable port, it is fitted with an easy-maintenance dry and wet bulb humidity measurement system for long-term stable use.
3. What functions does the UP-6195 programmable controller support?
Built with a high-performance PLC controller, it enables slope temperature control, constant value operation, program jump and automatic start-stop. With an RS-232 interface, it connects to computers for real-time data export, ensuring convenient operation and traceable test data.
4. What size specifications are available and what scenarios does it adapt to?
Six standard internal and external size options are provided, with internal dimensions ranging from 400×500×400mm to 1000×1000×1000mm. It flexibly accommodates test samples of different sizes and meets the layout and testing needs of various laboratories and quality inspection workshops.
5. What is the temperature and humidity range, accuracy and optional configuration?
It covers a temperature range of -70℃ to 150℃ and a humidity range of 20%-98% R.H., upgradable to 5% R.H. low humidity. The temperature control accuracy reaches ±0.5℃, with optional accessories including internal door operation holes and data recorders.
6. What guarantees does the refrigeration system and core components provide?
It supports air-cooled and water-cooled refrigeration modes, with single and dual-stage compressors for different low-temperature test requirements. Equipped with world-renowned Tecumseh and Bitzer compressors, the equipment operates stably with low failure rate and long service life.
7. What materials and protection functions does the equipment adopt?
The inner tank is made of corrosion-resistant SUS304 stainless steel, and the outer shell adopts stainless steel or sprayed cold-rolled steel plate. It has multiple protection functions including over-temperature, over-humidity and compressor overload protection, with intelligent fault alarms for safe operation.
8. What industries and test scenarios is the equipment suitable for?
Widely applied in electronics, pharmaceutical, chemical, scientific research and industrial quality inspection fields, it is used for environmental simulation and reliability testing. It effectively helps enterprises verify product stability and strictly control factory quality standards.
Post time: Jul-06-2026
