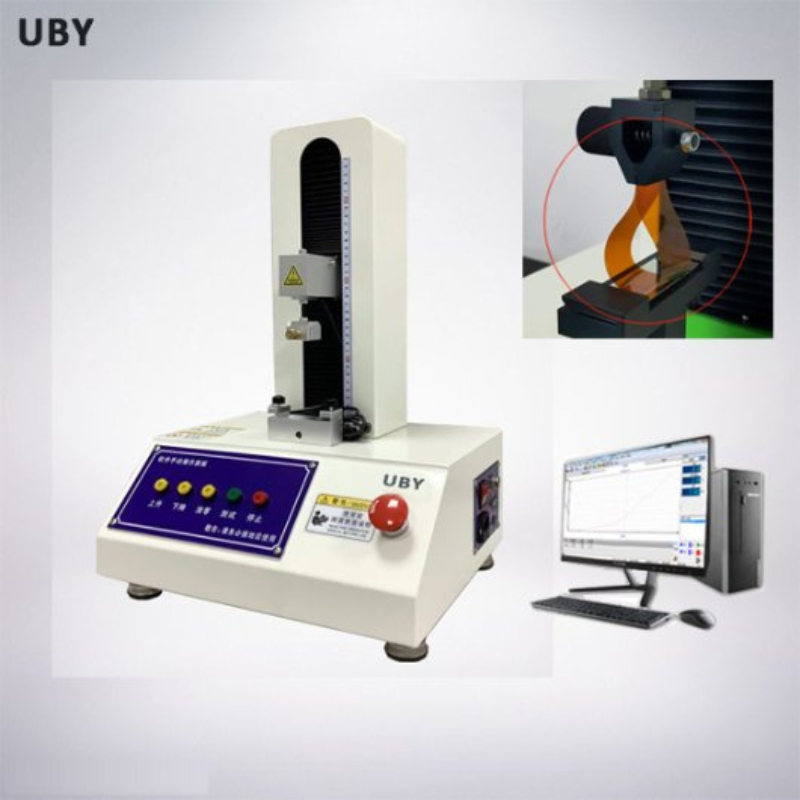

UP-8003 Loop initial adhesion tester

Description:

LOOP INITIAL ADHESION TESTER is a specialized instrument designed to accurately measure the initial tack or stickiness of pressure-sensitive materials such as tapes, labels, and films.

Function: It employs a unique “loop tack test method.” A loop-shaped sample of the material is brought into contact with a standard test panel at a constant speed and then separated. The maximum force required for separation is measured to quantify its instantaneous adhesive capability.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Design standards:

Meet FINAT (FINAT Test Method No. 9: Loop tack measurement), PSTC-16 LOOP TACK, ASTM D6195-03standard test methods for Loop Tack and the latest GB national standard (Adhesive tape initial adhesion test method loop method).

Test range:

The product is mainly used for the initial adhesion of various electronic tapes, protective films, self-adhesive labels, adhesives and other products.
Test principle: After the annular sample is fully contacted with the standard float test plate at a constant speed of 300mm/min, the instrument automatically reverses the annular sample and the test plate at a constant speed of 300mm/min to completely separate the maximum force generated. This maximum force value is the initial adhesion of the annular sample tested.

Technical parameters:

1. Measuring range: 0-100N.
2. Test accuracy: less than ±1% measurement error.
3. Test results: record the maximum tensile force required for the annular sample to detach from the stainless steel test plate and the sample's failure mode;
4. Measuring speed: 300mm/min.
5. Speed accuracy: less than ±1% error.
6. Sample size: 125×25mm.
7. Test plate size: 100×25×2mm.
8. Machine size: 550×300×350mm.
9. Power supply: AC 220V 50Hz.

Previous: UP-2004 High and Low Temperature Tensile Tester

Next:

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
