UP-6300 IPX5/6 Waterproof Test Machine

Waterproof Test Chamber is an equipment designed to simulate various water exposure conditions (such as dripping, spray, splashing, or even immersion) to evaluate the sealing integrity and water resistance rating of a product. It utilizes a precisely controlled water spray system to test products in accordance with international standards (e.g., IP Code, IEC 60529). The purpose is to verify whether the product can effectively prevent water ingress under specified pressure and duration, ensuring the reliability and durability of items like electronic devices, automotive parts, and outdoor lighting.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

General application fields:

outdoor lamps, household appliances, automotive accessories and other electronic and electrical products.

Test Condition:

IPX 5
Method name:Water jet test
Test device:Spray nuzzle inner diameter 6.3mm
Test condition:Make the test sample 2.5m ~ 3m far away from the nuzzle,water flow is 12.5 L/min (750 L/h)
Test time:According to the sample surface area,every square meter 1 min (exclude installation area) , at least 3 min

IPX 6
Method name:Strong water jet test
Test device:Spray nuzzle inner diameter 12.5mm
Test condition:Make the test sample 2.5m ~ 3m far away from the nuzzle,water flow is 100L/min (6000 L/h)
Test time:According to the sample surface area,every square meter 1 min (exclude installation area) , at least 3 min

Standards:

IEC60529:1989 +A1:1999 +A2:2013 GB7000.1

Specifications:

Overall size	W1000D800H1300

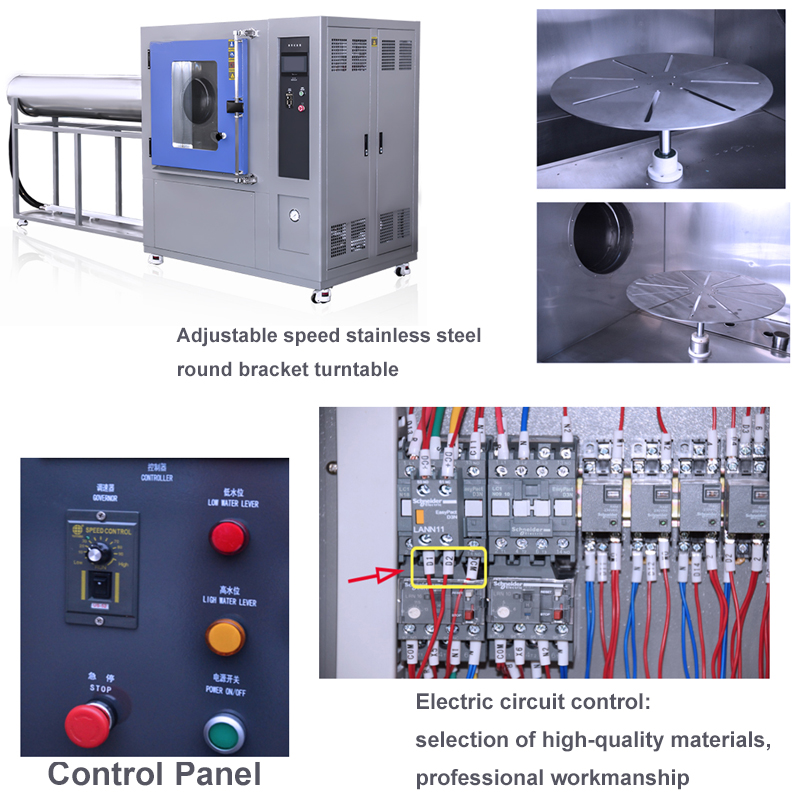

Turn table size	W600D600H800mm
Water tank capacity	550L, size around 800×600×1145(mm)
Turn table size	D600mm
IPX5 spray nozzle	D6.3mm
IPX6 spray nozzle	D12.5mm
IPX5 water flow	12.5±0.625(L/min)
IPX6 water flow	100±5(L/min)

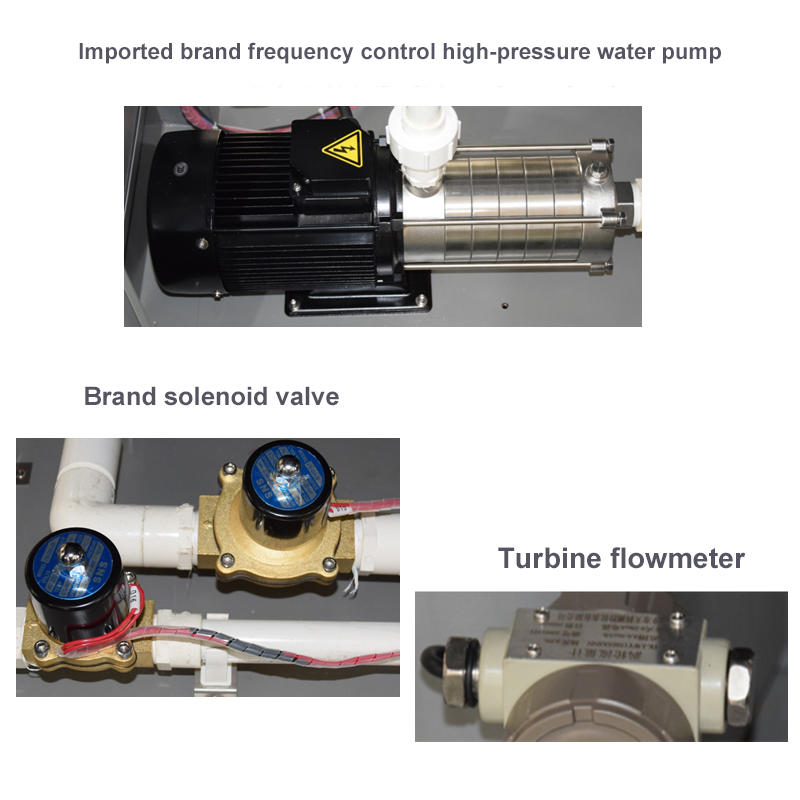

Flow control method	Manually adjusting (flow meter)
Spray distance	2.5-3m(controlled by operator)
Spray nozzle fixing method	Manually hold
Turn table max load	50KG

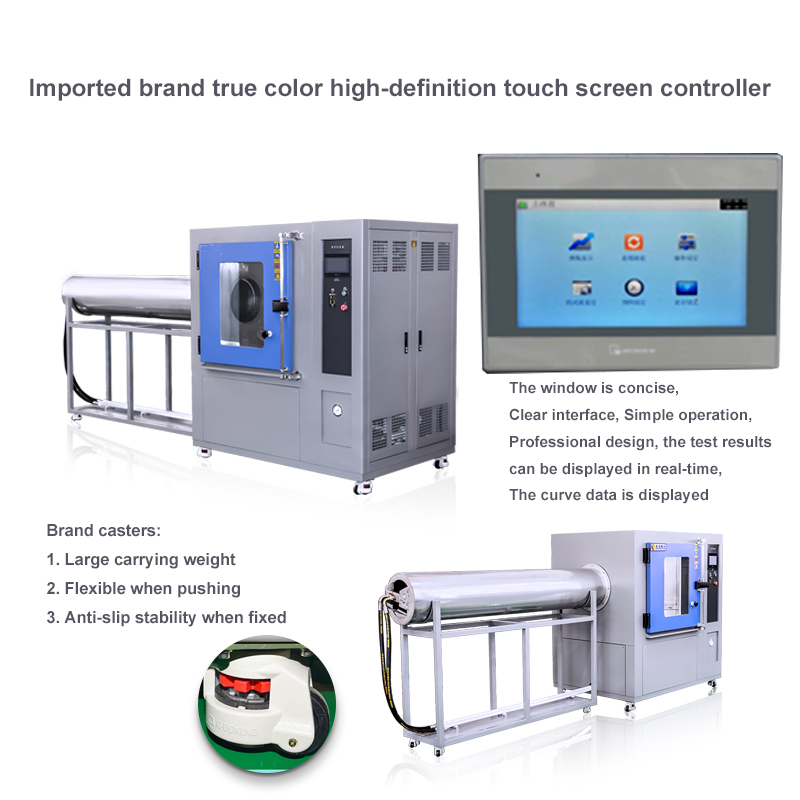

Control method	Buttom type	7 inch touch screen PLC
Power source	380V, 3.0kw

Previous: UP-6300 Ipx3 Ipx4 Auto Parts Rain Waterproof Test Chamber

Next: UP-4005 Leather Water Penetration Tester

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
