High-strength Tensile and Elongation Testing Machine

Tensile Strength Test Tester is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, elongation rate and other tests to determine product quality.

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Main functions:

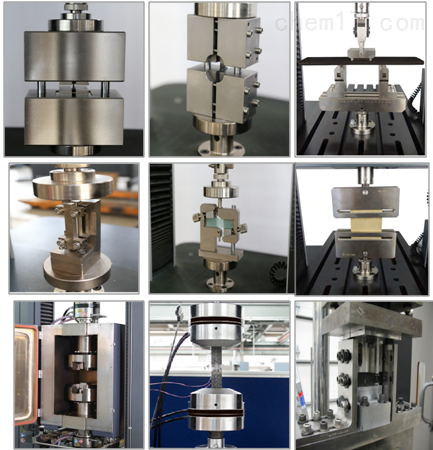

Static Tensile Test Machine can be test all the material in tensile, compression, bending,shear, peel, tear,two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber,plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.

Main feature :

1. the surface of appearance using electrostatic spray, simple and generous, multi-functions and economy
2. digital force displayed by LCD , discernible tension or pressure, LCD display clearly
3. Three kinds of units: N,Kg,Lb,Ton option or automatically exchange;
4. LCD with backlight can be used in low-light environments
5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
6. The system would shut down if overload or over-trip
7. Structure of single-column is beautiful, sophisticated and economy.

Corresponding standard:

GB/T16491-1996 electronic universal testing machine

Specifications:

Capacity	5,10,20,50,100,200,500,1000,2000,5000KG optional
Stroke	800mm(not including fixture)
Test Speed	50~500mm/min(control by keyboard inputing)
Test range	320mm MAX
Dimention	8050150CM
Weight	90kg
Accuracy	±0.5%or better
Operation method	computer control
Resolution	1/150,000
Motor	Panasonic servo motor
Operation system	TM2101
Accessories	customized clamps by appointed, force sensors,printer, and operation manual
Power	220V/50HZ

Safety Device:

Stroke protection	Machinery, computer double protection, prevent over preset
Force protection	system setting
Emergency stop device	Handling emergencies

Previous: TEMI364 temperature controller

Next: 90° Peel Strength Tester For Various Tapes Properties Testing

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
