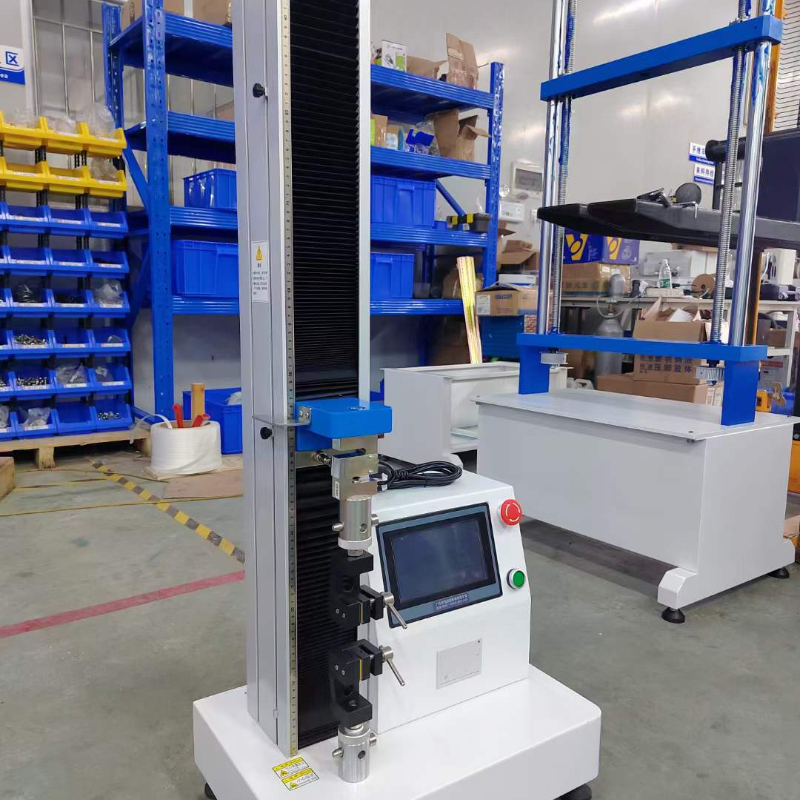

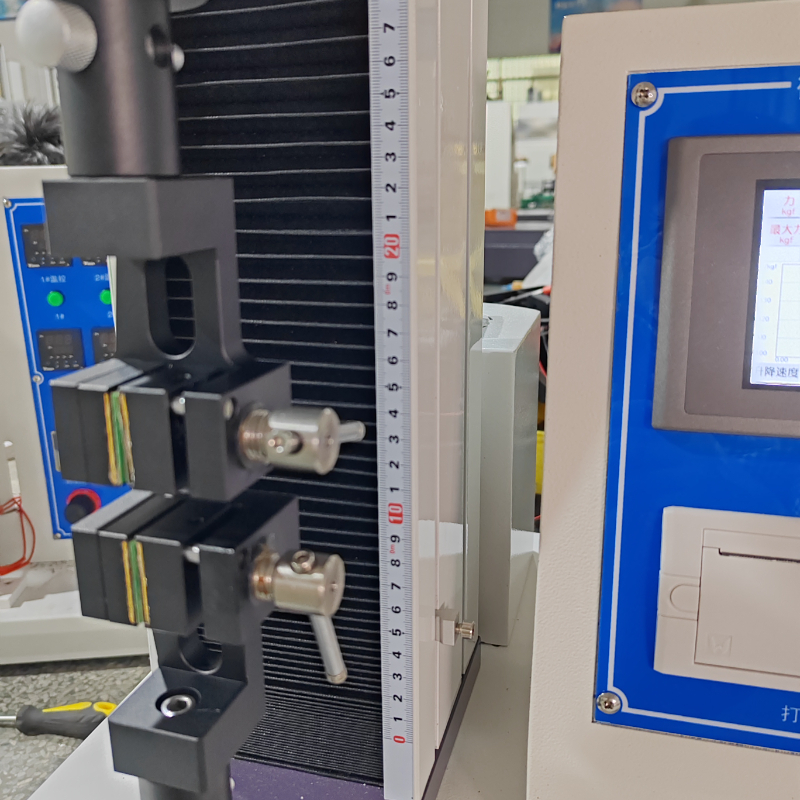

High Accuracy Optical Film Stripping Testing Machine

This equipment is latest peel machine in our company, with guide post transmission, high precision stable force sensor. Actually, it is specially for peel tests of thin film, protetive film, optical film, because their test force is very small, and have more precision request on the machine. Besides peel strength test, with different grips, it can also do other test contents, such as tensile strength, breaking force, elongation, tear, compression, bending test, so it is wide used in metal material, non-metal materials, adhesive tape, wire cable, fabric, package products,etc.

Load Measuring Accuracy : + / – 0.5% of the indicators met or exceeded the following international standards: ASTM E-4, BS 1610, DIN 51221, ISO7500/1, EN10002-2, JIS B7721, JIS B7733

Send email to us

Product Detail

SERVICE AND FAQ:

Product Tags

Introduction:

Load Measuring Accuracy :

+ / - 0.5% of the indicators met or exceeded the following international standards: ASTM E-4, BS 1610, DIN 51221, ISO7500/1, EN10002-2, JIS B7721, JIS B7733

Film Peel Machine Parameters :

Model Name	UP-2000 high accuracy peel strength tester
Force Sensor	2,5,10,20,50,100,200,500kgf any one option
Measurement and Control Software	Windows professional testing software by our comapny
Input Terminals	4 Load cells , Power, USB, two point extension
Measurement Accuracy	Better than ±0.5%
Force Resolution	1/1,000,000
Test Speed	0.01~3000mm/min,free set
Stroke	Max 1000mm, not included grip
Effective Test Space	Dia 120mm, front back
Unit Switch	A variety of measurement units including international units
Stop Method	Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special Function	The holding, holding and fatigue testing can be done
Standard Configuration	Standard fixture 1 set, software and data line 1 sets,, operating instructions, product certification 1 copy, 1 copy of product warranty card
Purchase Configuration	Business computer 1 set, color printer 1 set, kinds of test fixtures
Machine Size	About 57×47×120cm(W×D×H)
Machine Weight	About 70kg
Motor	AC servo motor
Control Method	Embedded computer measurement and control system
Speed Accuracy	±0.1% of set speed
Electric Power	1PH,AC 220V, 50/60Hz

Previous: 90° Peel Strength Tester For Various Tapes Properties Testing

Next: UP-2001 High-Precision Rubber Tensile Strength Tester

Our service:

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications customize process:Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and delivery process:We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products is confirmed shipping time and inform the customer.

4) Installation and after-sale service:Defines installing those products in the field and providing after-sales support.

FAQ:

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?Yes, we are the one of professional Manufacturers like Environmental Chambers, Leather shoe testing equipment, Plastic Rubber testing Equipment… in China. Every machine purchased from our factory has 12 months warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.

Moreover, If your machine doesn’t work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment received; If you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can I install and use the machine?Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it.
